JCB

437 HT HL

Wheel Loader

Operating Weight
33,546 lb
Bucket Capacity - heaped
3.10 yd³
Gross Power
183.0 hp
Net Power
161.0 hp
All wheel loaders

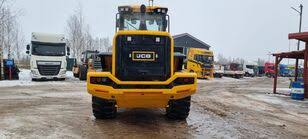

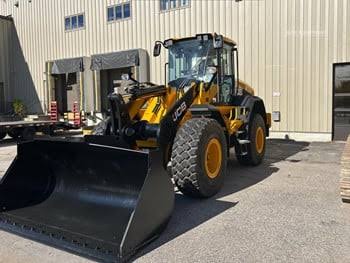

JCB 437 HT HL Wheel Loader
1 / 5
Image 1 of 5
Image: williamsjcb.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,546 lb
Fuel Capacity71.4 gal
Hydraulic System Fluid Capacity55.5 gal
Operating Voltage24 V
Turning Radius261 in
Rear Axle Oscillation11 °
Alternator Supplied Amperage120 A
DEF tank capacity10.6 gal
Articulation Angle40 °
Payload5,955 lb
Full Turn Tipping Load16,402 lb

Engine

Engine specifications
Engine ModelQSB
Displacement409 in³
Power Measured @2,100 rpm
Gross Power183.0 hp
Net Power161.0 hp
Number of Cylinders6
AspirationTurbo Charged
Torque Measured @1,500 rpm
Engine TypeCummins
Emission Tier LevelEU Stage IV US EPA Tier 4F
Air cleanerCyclonic pre filter with engine fan scavenge system
No. of Valves4
Fan drive typeHydraulically driven cooling fan

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity33.3 gal/min
Raise Time6.3 s
Lower Time4.7 s
Dump Time2.0 s
Relief Valve Setting3,190 psi
Pump TypeVariable displacement
Total cycle12.9 s

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab133 in
Wheelbase121 in
Width Over Tires103 in
Reach at Max Lift and Dump46 in
Length with Bucket on Ground335 in
Hinge Pin - Max Height206 in

Transmission

Transmission specifications
Max Speed - Forward23.6 mph
Max Speed - Reverse16.0 mph
Transmission Type4 speed non-lock up converter 4WG
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.10 yd³
Bucket Capacity - struck2.60 yd³
Dump Clearance at Max Raise158 in
Breakout Force33,047 lb
Bucket Width108 in
