JCB
Tata Hitachi
TWL3036

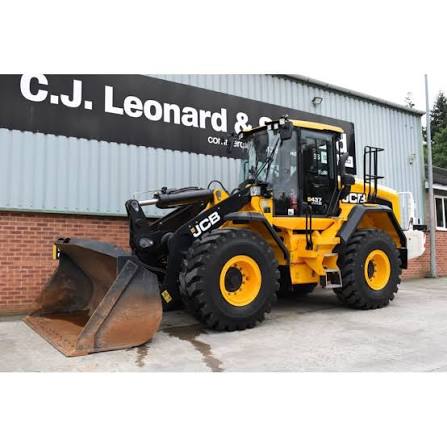

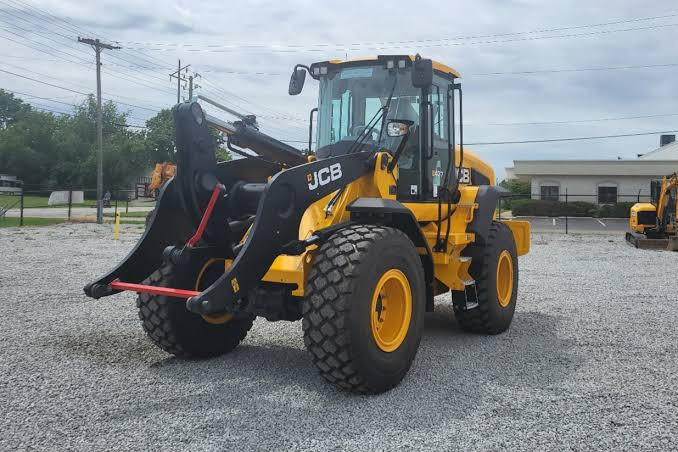

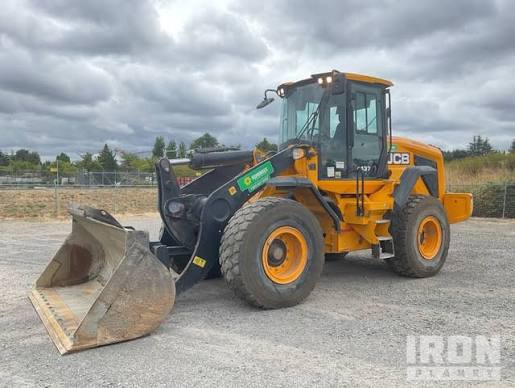

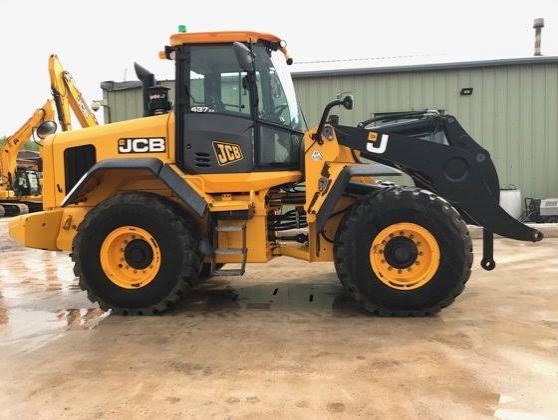

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 33,570 lb |
|---|---|
| Fuel Capacity | 71.4 gal |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Operating Voltage | 24 V |
| Turning Radius | 239 in |
| Rear Axle Oscillation | 11 ° |
| Alternator Supplied Amperage | 120 A |
| Rated Bucket Capacity | 3.51 yd³ |
| DEF tank capacity | 10.6 gal |
| Articulation Angle | 40 ° |
| Payload | 10,040 lb |
| Full Turn Tipping Load | 20,077 lb |
Engine
| Engine Model | QSB |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 183.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo Charged |
| Torque Measured @ | 1,500 rpm |
| Engine Type | Cummins |
| Emission Tier Level | EU Stage IV US EPA Tier 4F |
| Air cleaner | Cyclonic pre filter with engine fan scavenge system |
| No. of Valves | 4 |
| Fan drive type | Hydraulically driven cooling fan |
Weights
| Operating Weight | 39,663 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 33.3 gal/min |
|---|---|
| Raise Time | 6.3 s |
| Lower Time | 4.7 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,190 psi |
| Pump Type | Variable displacement |
| Total cycle | 12.9 s |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 121 in |
| Width Over Tires | 103 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 288 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 16.0 mph |
| Transmission Type | 4 speed non-lock up converter 4WG |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.10 yd³ |
|---|---|
| Bucket Capacity - struck | 2.60 yd³ |
| Breakout Force | 39,566 lb |
| Bucket Width | 108 in |
General Specifications
| Bucket Capacity cu. yd. (cu m) | 3.5 (2.7) — Starting 2026 Model Year |
|---|---|
| Engine type | Cummins QSB — Starting 2026 Model Year |
| Max Dump Height ft.( m) | 9' 6" (2900) — Starting 2026 Model Year |
| OperatingWeight lbs. (kg) | 34,236 (15,529) — Starting 2026 Model Year |
| Engine Power Gross hp (kW) | 183 (136) — Starting 2026 Model Year |
