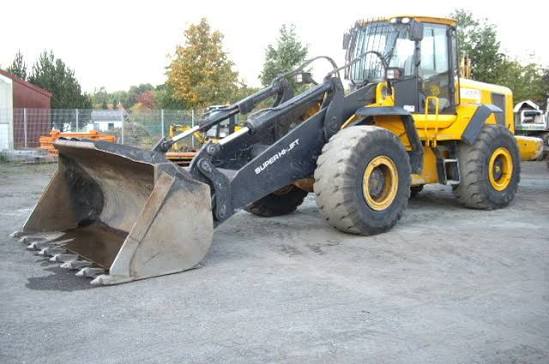

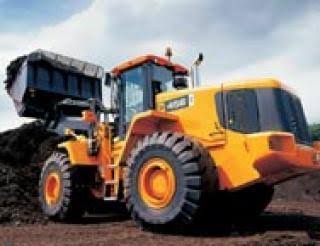

JCB 456HT Wheel Loader
1 / 5
Image 1 of 5
Image: hunterjcb.com.au

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity84.6 gal
Hydraulic System Fluid Capacity56.8 gal
Static Tipping Weight32,265 lb
Operating Voltage24 V
Turning Radius261 in
Engine Oil Fluid Capacity5.0 gal
Rear Axle Oscillation25 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity18.3 gal
Rear Axle/Diff Fluid Capacity13.5 gal
Cooling System Fluid Capacity10.6 gal
Transmission Fluid Capacity9.0 gal
Engine Oil Capacity5.0 gal
Static Tipping Load - Bucket31,952 lb
Front Diff Fluid Capacity18.3 gal
Rear Diff Fluid Capacity13.5 gal
Static Tipping Load - Forks24,870 lb

Engine

Engine specifications
Displacement507 in³
Power Measured @2,200 rpm
Number of Cylinders6
Aspirationturbocharged
Max Torque675 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time5.8 s
Lower Time4.1 s
Dump Time1.2 s
Relief Valve Setting3,625 psi
Pump Typetwin variable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab133 in
Wheelbase131 in
Width Over Tires107 in
Reach at Max Lift and Dump53 in
Length with Bucket on Ground336 in
Hinge Pin - Max Height170 in
Reach at Max Height and Dump49 in
Length w/ Bucket on Ground336 in
Dump Clearance at Max Lift121 in
Max Lift Height166 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.3 mph
Max Speed - Reverse15.2 mph
Transmission Typesmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Dump Clearance at Max Raise117 in
Bucket Width113 in
