John Deere

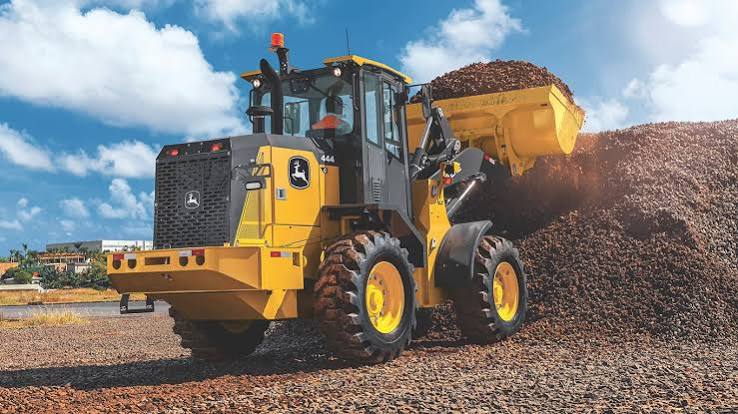

444E Loader w/ Coupler
- Operating Weight
- 19,474 lb
- Bucket Capacity - heaped
- 1.50 yd³
- Gross Power
- 100.0 hp
- Net Power
- 95.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 19,474 lb |
|---|---|
| Fuel Capacity | 37.0 gal |
| Tire Size | 15.5-25 |
| Hydraulic System Fluid Capacity | 13.3 gal |
| Static Tipping Weight | 14,030 lb |
| Operating Voltage | 12 V |
| Turning Radius | 180 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 90 A |
| Front Axle/Diff Fluid Capacity | 4.3 gal |
| Rear Axle/Diff Fluid Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 9.0 gal |
| Transmission Fluid Capacity | 2.0 gal |
Engine
| Engine Model | 4276T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 100.0 hp |
| Net Power | 95.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 38.8 gal/min |
|---|---|
| Raise Time | 5.3 s |
| Lower Time | 3.1 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 2,987 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 104 in |
| Width Over Tires | 89 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 250 in |
| Hinge Pin - Max Height | 142 in |
Transmission
| Max Speed - Forward | 20.0 mph |
|---|---|
| Max Speed - Reverse | 20.0 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.50 yd³ |
|---|---|
| Bucket Capacity - struck | 1.20 yd³ |
| Dump Clearance at Max Raise | 113 in |
| Breakout Force | 18,654 lb |
| Bucket Width | 96 in |
