Case

221D

Wheel Loader

Operating Weight
11,793 lb
Bucket Capacity - heaped
1.40 yd³
Gross Power
60.5 hp
Net Power
57.5 hp
All wheel loaders

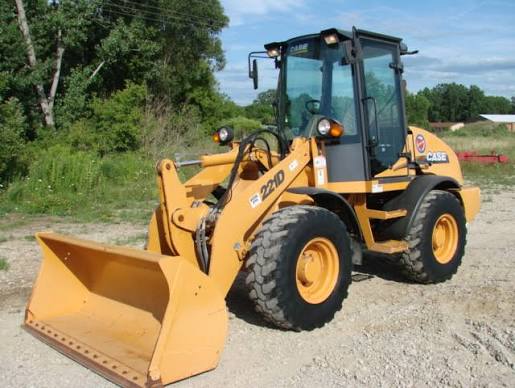

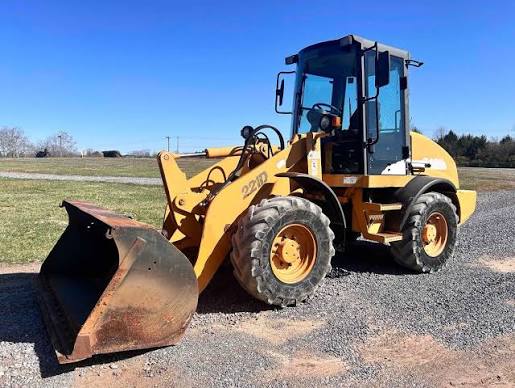

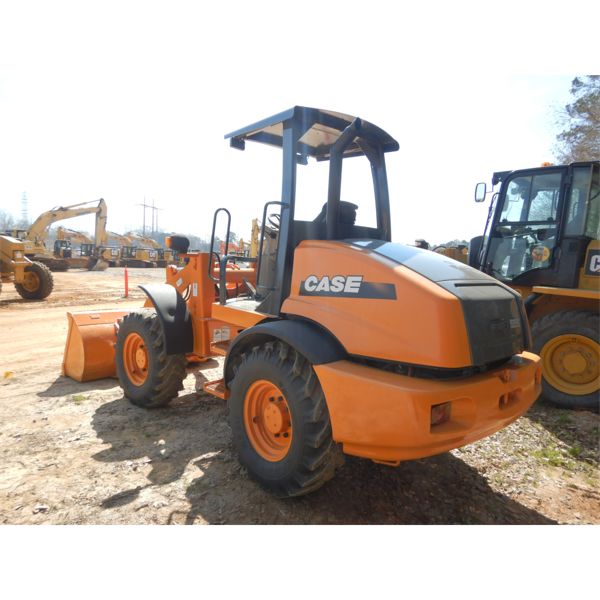

Case 221D Wheel Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,793 lb
Fuel Capacity26.4 gal
Tire Size365/80 R20
Hydraulic System Fluid Capacity4.1 gal
Static Tipping Weight8,874 lb
Operating Voltage12 V
Turning Radius156 in
Engine Oil Fluid Capacity2.3 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity1.0 gal
Rear Axle/Diff Fluid Capacity1.0 gal
Cooling System Fluid Capacity3.2 gal

Engine

Engine specifications
Engine ModelF4M2011
Displacement190 in³
Power Measured @2,500 rpm
Gross Power60.5 hp
Net Power57.5 hp
Number of Cylinders4
Torque Measured @1,700 rpm
Torque Rise9.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.4 gal/min
Raise Time5.5 s
Lower Time3.0 s
Dump Time1.1 s
Relief Valve Setting3,335 psi
Pump Typeopen-centered pressure/flow compensated

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab110 in
Wheelbase89 in
Width Over Tires76 in
Reach at Max Lift and Dump31 in
Length with Bucket on Ground212 in
Hinge Pin - Max Height126 in

Transmission

Transmission specifications
Max Speed - Forward12.4 mph
Max Speed - Reverse12.4 mph
Transmission Typehydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.40 yd³
Bucket Capacity - struck1.10 yd³
Dump Clearance at Max Raise100 in
Breakout Force12,182 lb
Bucket Width83 in
