Junlian

JL833

Wheel Loader

Operating Weight
19,380 lb
Bucket Capacity - heaped
2.30 yd³
Net Power
123.4 hp
All wheel loaders

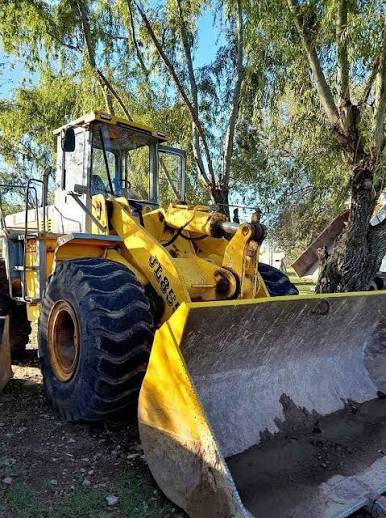

Junlian JL833 Wheel Loader
1 / 5
Image 1 of 5
Image: heavy-spec.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,380 lb
Tire Size17.5-25

Engine

Engine specifications
Engine ModelTD226B-6
Net Power123.4 hp

Hydraulic System

Hydraulic System specifications
Raise Time6.0 s
Relief Valve Setting2,277 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab127 in
Wheelbase109 in
Width Over Tires89 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground263 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Transmission Typepower shift
Number of Forward Gears4
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Dump Clearance at Max Raise126 in
Bucket Width97 in
