JCB

456ZX High Lift

Wheel Loader

All wheel loaders

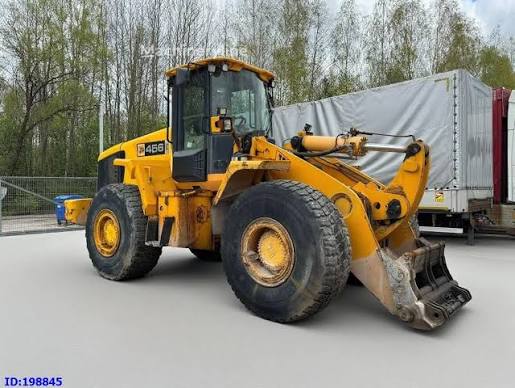

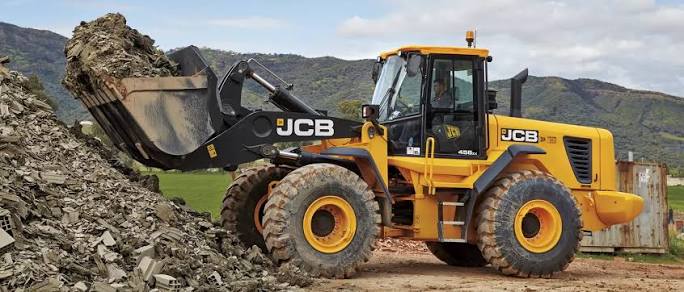

JCB 456ZX High Lift Wheel Loader
1 / 5
Image 1 of 5
Image: hunterjcb.com.au

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Static Tipping Weight25,563 lb
Operating Voltage24 V
Turning Radius268 in
Engine Oil Fluid Capacity5.0 gal
Rear Axle Oscillation25 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity18.0 gal
Rear Axle/Diff Fluid Capacity13.0 gal
Transmission Fluid Capacity9.0 gal
Engine Oil Capacity5.0 gal
Static Tipping Load - Bucket25,217 lb
Front Diff Fluid Capacity18.3 gal
Rear Diff Fluid Capacity13.5 gal
Static Tipping Load - Forks19,582 lb

Engine

Engine specifications
Engine Model6CT 8.3C
Power Measured @2,200 rpm
Number of Cylinders6
Torque Measured @1,400 rpm
Max Torque733 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time5.8 s
Lower Time4.1 s
Dump Time1.2 s
Relief Valve Setting3,625 psi
Pump Typetwin variable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab133 in
Width Over Tires107 in
Reach at Max Lift and Dump44 in
Length with Bucket on Ground336 in
Hinge Pin - Max Height185 in
Dump Clearance at Max Lift137 in
Reach at Max Height and Dump47 in
Length w/ Bucket on Ground336 in
Max Lift Height180 in
Fork Tine Length49 in

Transmission

Transmission specifications
Max Speed - Forward23.4 mph
Max Speed - Reverse15.3 mph
Transmission Typesmooth shift powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Dump Clearance at Max Raise134 in
Bucket Width113 in
