Case
21D
Wheel Loader
43 specifications
Zettelmeyer
ZL802Si
- Operating Weight
- 15,873 lb
- Bucket Capacity - heaped
- 1.40 yd³
- Gross Power
- 83.0 hp
- Net Power
- 80.0 hp
1 / 5

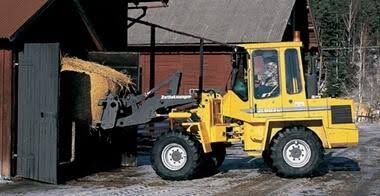

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 15,873 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Tire Size | 15.5-25 |
| Hydraulic System Fluid Capacity | 29.1 gal |
| Static Tipping Weight | 9,634 lb |
| Operating Voltage | 24 V |
| Turning Radius | 176 in |
| Engine Oil Fluid Capacity | 2.4 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 2.3 gal |
| Rear Axle/Diff Fluid Capacity | 3.1 gal |
Engine
| Engine Model | KHD BF 4M 1012 E |
|---|---|
| Displacement | 195 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 83.0 hp |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbo + water cooled |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 23.8 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 5.5 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,045 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 113 in |
| Wheelbase | 89 in |
| Width Over Tires | 79 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 216 in |
| Hinge Pin - Max Height | 137 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|---|
| Max Speed - Reverse | 9.1 mph |
| Transmission Type | hydrostatic full power shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 14,163 lb |
| Bucket Width | 81 in |
