Terex

TL120

Wheel Loader

Operating Weight
15,656 lb
Bucket Capacity - heaped
1.60 yd³
Net Power
84.0 hp
All wheel loaders

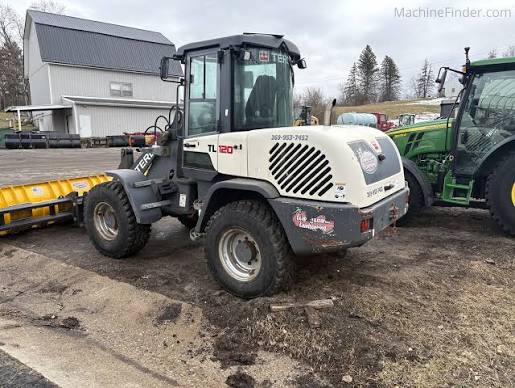

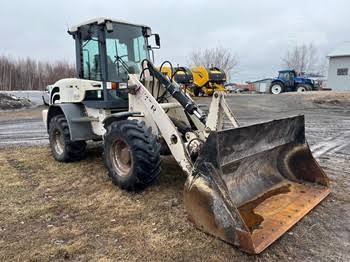

Terex TL120 Wheel Loader
1 / 5
Image 1 of 5
Image: schaeff-yanmar.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,656 lb
Fuel Capacity29.1 gal
Tire Size405/70 R 20 EM 01 Mitas
Hydraulic System Fluid Capacity24.6 gal
Static Tipping Weight11,642 lb
Operating Voltage12 V
Turning Radius183 in
Rear Axle Oscillation24 °
Rated Bucket Capacity1.10 – 2.39 yd³

Engine

Engine specifications
Engine Model1104C-44
Displacement269 in³
Power Measured @2,200 rpm
Net Power84.0 hp
Number of Cylinders4
Aspirationnatural
MakePerkins

Weights

Weights specifications
Operating Weight15,656 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.0 gal/min
Relief Valve Setting3,625 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab110 in
Wheelbase91 in
Width Over Tires78 in
Reach at Max Lift and Dump32 in
Length with Bucket on Ground222 in
Hinge Pin - Max Height139 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission Typehydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.60 yd³
Dump Clearance at Max Raise109 in
Breakout Force13,275 lb
Bucket Width83 in

General Specifications

General Specifications specifications
Operating Weight15,432 (7,000) — Starting 2016 Model Year
Bucket Capacity1.57 to 2.35 (1.2 to 1.8) — Starting 2016 Model Year
Engine typeDeutz — Starting 2016 Model Year
Engine Power101 (74.4) — Starting 2016 Model Year
Max Dump Height9 (2.75) — Starting 2016 Model Year
