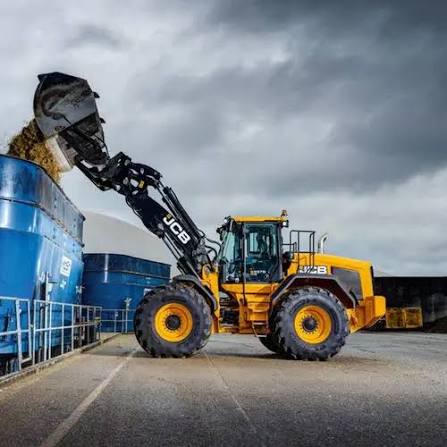

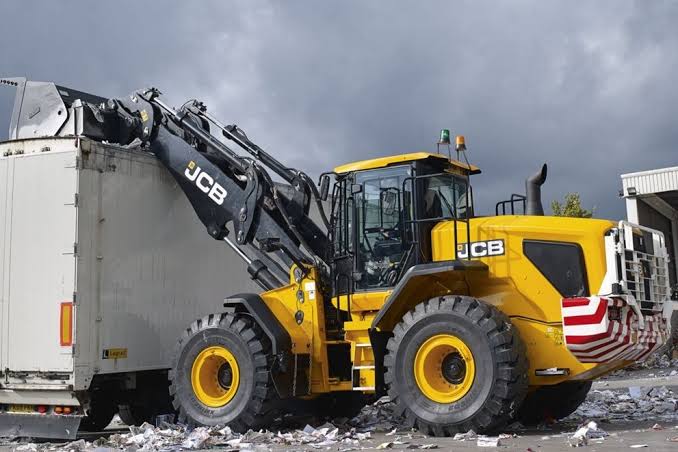

JCB
457 HT SHL
- Operating Weight
- 47,274 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Gross Power
- 258.0 hp
- Net Power
- 256.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 47,274 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Hydraulic System Fluid Capacity | 35.7 gal |
| Operating Voltage | 24 V |
| Turning Radius | 281 in |
| Engine Oil Fluid Capacity | 6.7 gal |
| Rear Axle Oscillation | 12 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 9.3 gal |
| Cooling System Fluid Capacity | 11.1 gal |
| Transmission Fluid Capacity | 10.9 gal |
| DEF tank capacity | 11.1 gal |
| Articulation Angle | 40 ° |
| Payload | 9,932 lb |
| Full Turn Tipping Load | 19,862 lb |
Engine
| Engine Model | 6R1000 |
|---|---|
| Displacement | 470 in³ |
| Power Measured @ | 1,600 rpm |
| Gross Power | 258.0 hp |
| Net Power | 256.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo Charged |
| Torque Measured @ | 1,600 rpm |
| Engine Type | MTU |
| Emission Tier Level | EPA 40 CFR 89 / Tier 4 Final EU 97/68/EC/STAGE IV |
| Air cleaner | Intergrated pre-cleaner scavenged |
| No. of Valves | 4 |
| Fan drive type | Hydraulic |
Hydraulic System
| Pump Flow Capacity | 40.5 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 4.1 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,190 psi |
| Pump Type | Variable displacement |
| Total cycle | 11.1 s |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 131 in |
| Width Over Tires | 107 in |
| Reach at Max Lift and Dump | 53 in |
| Length with Bucket on Ground | 373 in |
| Hinge Pin - Max Height | 207 in |
Transmission
| Max Speed - Forward | 22.5 mph |
|---|---|
| Max Speed - Reverse | 14.7 mph |
| Transmission Type | 4 speed non-lock up converter ZF 4WG210 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 2.90 yd³ |
| Dump Clearance at Max Raise | 156 in |
| Breakout Force | 39,342 lb |
| Bucket Width | 113 in |
