Volvo

4400

Wheel Loader

Operating Weight
28,495 lb
Gross Power
126.1 hp
Net Power
140.9 hp
All wheel loaders

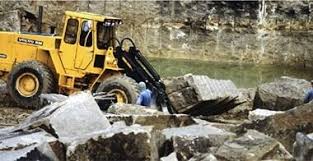

Volvo 4400 Wheel Loader
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,495 lb
Fuel Capacity51.6 gal
Hydraulic System Fluid Capacity39.7 gal
Operating Voltage24 V
Alternator Supplied Amperage45 A
Cooling System Fluid Capacity7.7 gal
Transmission Fluid Capacity7.2 gal
Engine Oil Capacity4.0 gal

Engine

Engine specifications
Engine ModelTD 60 B
Displacement335 in³
Power Measured @2,100 rpm
Gross Power126.1 hp
Net Power140.9 hp
Number of Cylinders6
Aspirationturbo
Torque Measured @1,600 rpm
Max Torque376 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Wheelbase113 in
Width Over Wheels96 in

Transmission

Transmission specifications
Transmission Typefull power shift

Blades

Blades specifications
Blade Width100 in
Blade Capacity2.50 yd³

Wheels

Wheels specifications
Front Wheels Drum Diameter47 in
Front Wheels Drum Width20 in
Rear Wheels Drum Diameter47 in
Rear Wheels Drum Width20 in
