JCB

804

Mini Excavator

Operating Weight
7,730 lb
Max Digging Depth
141 in
Gross Power
20.7 hp
Net Power
19.8 hp
All mini excavators

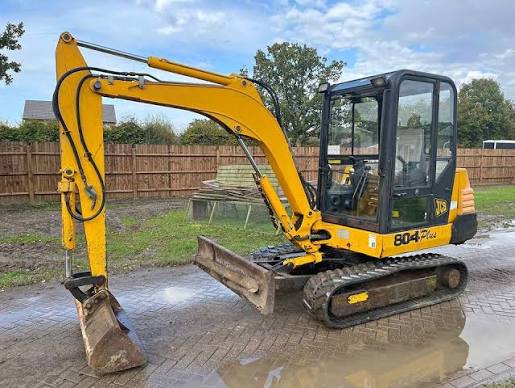

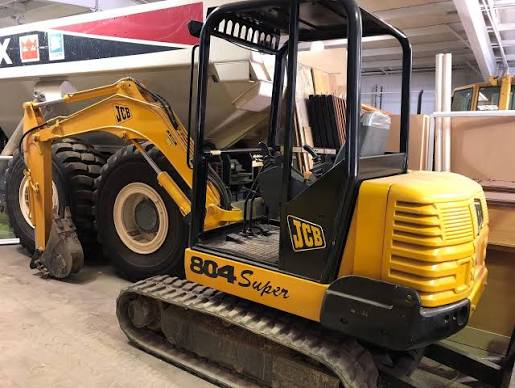

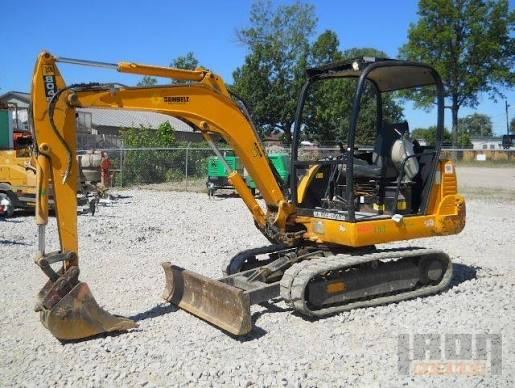

JCB 804 Mini Excavator
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,730 lb
Fuel Capacity12.7 gal
Hydraulic Pump Flow Capacity9.3 gal/min
Hydraulic System Fluid Capacity18.5 gal
Hydraulic System Relief Valve Pressure2,756 psi
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Capacity1.4 gal

Engine

Engine specifications
Engine Model403-15
Gross Power20.7 hp
Net Power19.8 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab104 in
Length of Track on Ground88 in
Tail Swing Radius47 in
Width to Outside of Tracks85 in
Removal Counterweight Clearance31 in

Undercarriage

Undercarriage specifications
Track Gauge67 in
Number of Track Rollers per Side4
Shoe Size14 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth141 in
Max Reach Along Ground205 in
Max Loading Height137 in
Shipping Length of Unit173 in
Max Cutting Height182 in
Shipping Height of Unit96 in
