Tata Hitachi

TMX20

Mini Excavator

Operating Weight
4,850 lb
Max Digging Depth
93 in
Net Power
28.0 hp
All mini excavators

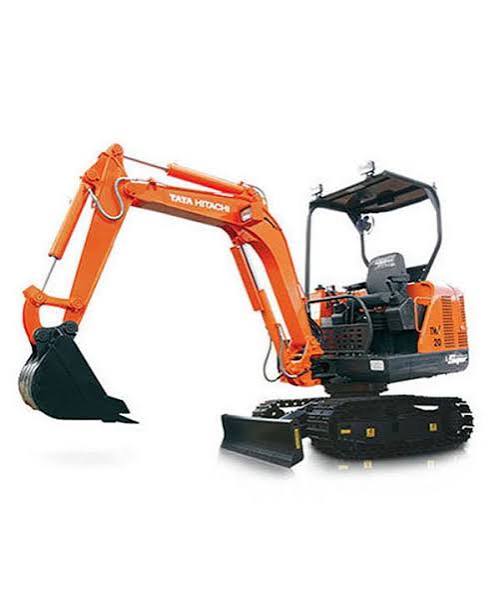

Tata Hitachi TMX20 Mini Excavator
1 / 5
Image 1 of 5
Image: psnce.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,850 lb
Fuel Capacity9.8 gal
Hydraulic Pump Flow Capacity16.9 gal/min
Hydraulic System Fluid Capacity18.5 gal
Hydraulic System Relief Valve Pressure2,134 psi
Engine Oil Capacity1.4 gal
Cooling System Fluid Capacity2.7 gal

Engine

Engine specifications
Engine ModelS217
Power Measured @2,000 rpm
Net Power28.0 hp
Torque Measured @1,400 rpm
Max Torque79 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab94 in
Length of Track on Ground52 in
Tail Swing Radius50 in
Width to Outside of Tracks54 in
Removal Counterweight Clearance25 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge44 in
Number of Track Rollers per Side3
Max Travel Speed1.9 mph
Shoe Size10 in
Number of Shoes per Side36
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth93 in
Max Reach Along Ground159 in
Max Loading Height106 in
Shipping Length of Unit159 in
Max Cutting Height156 in
Shipping Height of Unit94 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
