Hyundai

ROBEX 22-7

Mini Excavator

Operating Weight
4,850 lb
Max Digging Depth
94 in
Net Power
17.0 hp
All mini excavators

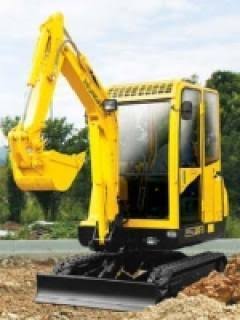

Hyundai ROBEX 22-7 Mini Excavator
1 / 5
Image 1 of 5
Image: ph.pinterest.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,850 lb
Fuel Capacity7.7 gal
Hydraulic Pump Flow Capacity16.8 gal/min
Hydraulic System Fluid Capacity8.8 gal
Hydraulic System Relief Valve Pressure2,700 psi
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity1.5 gal

Engine

Engine specifications
Engine ModelL3E-W231
Displacement58 in³
Power Measured @2,400 rpm
Net Power17.0 hp

Dimensions

Dimensions specifications
Length of Track on Ground53 in
Tail Swing Radius70 in
Width to Outside of Tracks55 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge46 in
Max Travel Speed2.4 mph
Shoe Size9 in
Drawbar Pull3,640 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth94 in
Max Reach Along Ground161 in
Max Vertical Wall Digging Depth71 in
Max Loading Height100 in
Shipping Length of Unit161 in
Max Cutting Height148 in
Shipping Height of Unit89 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
