JCB

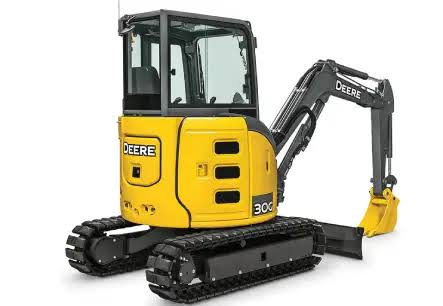

John Deere
30
Mini Excavator
34 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 10,472 lb |
|---|---|
| Fuel Capacity | 18.0 gal |
| Hydraulic Pump Flow Capacity | 23.8 gal/min |
| Hydraulic System Fluid Capacity | 25.9 gal |
| Hydraulic System Relief Valve Pressure | 3,626 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
| Engine Oil Capacity | 3.8 gal |
| Cooling System Fluid Capacity | 3.6 gal |
Engine
| Engine Model | 404-22C |
|---|---|
| Displacement | 135 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 46.4 hp |
| Net Power | 45.0 hp |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 101 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 102 in |
| Tail Swing Radius | 40 in |
| Width to Outside of Tracks | 78 in |
| Removal Counterweight Clearance | 28 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 62 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 16 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 139 in |
|---|---|
| Max Reach Along Ground | 230 in |
| Max Vertical Wall Digging Depth | 101 in |
| Max Loading Height | 157 in |
| Shipping Length of Unit | 236 in |
| Max Cutting Height | 216 in |
| Shipping Height of Unit | 181 in |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|---|
| Swing Torque | 12,319 lb-ft |

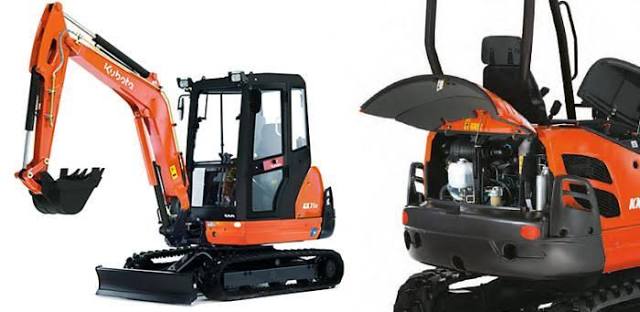

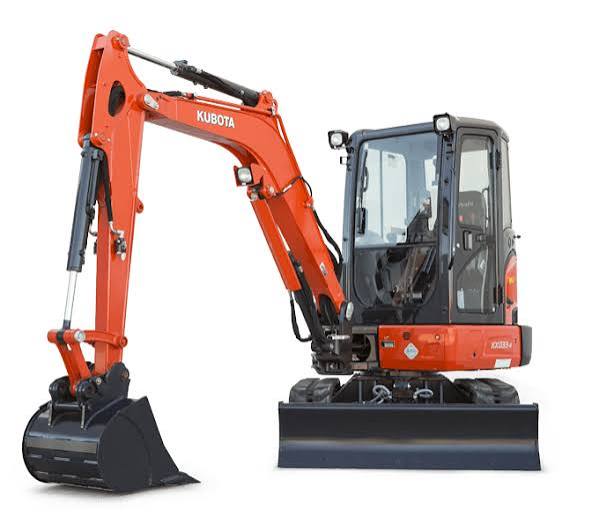

Comparable machines
