JCB
Fastrac 2140
- Operating Weight
- 14,727 lb
- Displacement
- 360 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 155.0 hp
1 / 5

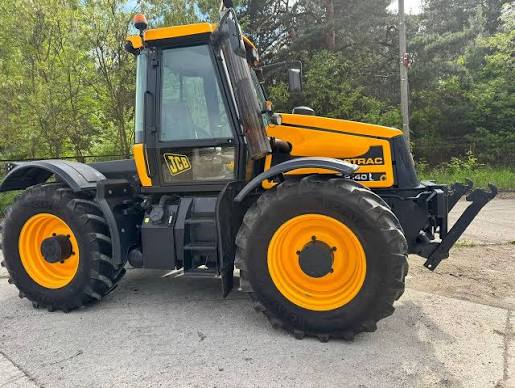

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 14,727 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 13,228 lb |
| 3 Point Hitch Type | Cat. III |
| Alternator Supplied Amperage | 150 A |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 31.8 gal |
Engine
| Engine Model | QSB30 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 155.0 hp |
| Net Power | 142.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Wastegate turbocharged |
| PTO Power | 132.0 hp |
| Torque Rise | 19.0 % |
Hydraulic System
| Pump Flow Capacity | 26.2 gal/min |
|---|---|
| Relief Valve Pressure | 3,046 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 114 in |
| Wheelbase | 111 in |
| Overall Length | 17 in |
| Tire Size | 480/70R30 |
| Width Outside Frame | 91 in |
| Track Width | 72 in |
Transmission
| Max Speed | 32.0 mph |
|---|---|
| Number of Forward Gears | 54 |
| Transmission Type | 6 gear manual synchromesh gearbox |
| Number of Reverse Gears | 18 |
