HML42
Excavator
32 specifications
1 / 5

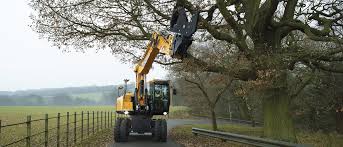

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 39,948 lb |
|---|---|
| Fuel Capacity | 76.7 gal |
| Hydraulic Pump Flow Capacity | 82.5 gal/min |
| Hydraulic System Fluid Capacity | 32.8 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 5.2 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 A |
| Hydraulic Pump Type | load-sensed hydraulic system with twin variable flow piston pumps providing flow on demand for maximum efficiency |
| Tire Size | twins: 10x20 16PR single: 18Rx19.5 (radials) |
| Oscillating Axle Angle | 17 ° |
| Front Diff Fluid Capacity | 3.7 gal |
| Rear Diff Fluid Capacity | 3.2 gal |
Engine
| Engine Model | JCB EcoMAX 448 TCA-99 Eu Stage IIIB EPA Tier 4 interim compliant. |
|---|---|
| Displacement | 293 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 138.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged diesel |
| Engine Type | Water cooled 4-stroke 4-cylinder in-line direct injection turbocharged diesel |
| Alternator | 55 A |
| Cooling system | Large capacity radiator |
| Air filter type | Dry element with secondary safety element and in cab warning indicator |
| Rated Power | 172.0 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 126 in |
| Overall Width | 8 in |
| Upper Structure Clearance | 50 in |
Transmission
| Max Travel Speed | 18.7 mph |
|---|---|
| Transmission Type | hydrostatic powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 224 in |
|---|---|
| Max Cutting Height | 359 in |
| Max Reach Along Ground | 331 in |
| Max Loading Height | 261 in |
| Shipping Length of Unit | 328 in |
| Shipping Height of Unit | 109 in |
| Max Vertical Wall Dig Depth | 151 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 241 in |
|---|---|
| Max Cutting Height | 365 in |
| Max Reach Along Ground | 346 in |
| Max Loading Height | 269 in |
| Shipping Height of Unit | 109 in |
| Shipping Length of Unit | 326 in |
| Max Vertical Wall Dig Depth | 166 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 254 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Reach Along Ground | 361 in |
| Max Loading Height | 283 in |
| Shipping Height of Unit | 128 in |
| Shipping Length of Unit | 333 in |
| Max Vertical Wall Dig Depth | 191 in |
