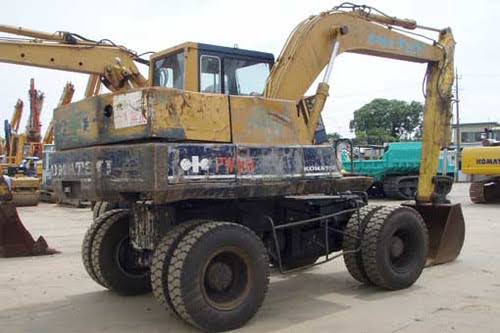

PW100-3
Excavator
37 specifications
1 / 5
Image 1 of 5
Specifications
64 data points
Operating Specifications
| Operating Weight | 40,424 lb |
|---|---|
| Fuel Capacity | 66.9 gal |
| Hydraulic Pump Flow Capacity | 73.0 gal/min |
| Hydraulic System Fluid Capacity | 37.6 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 4.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | JCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliant |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 109.0 hp |
| Engine Make | JCB |
| Alternator | 55 A |
| Battery | 2 x 12 V |
| Max Digging Reach | 364 in |
Hydraulic System
| Main pump - Maximum flow | 86.7 gal |
|---|
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 93 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 43 in |
| Undercarriage Overall Length | 165 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 2.0 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
| Track Adjustment | Grease cylinder type |
Brakes & Steering
| Service brake | Hydraulic counter balance valve |
|---|
Fluid Capacities
| Engine Oil | 0.6 gal |
|---|---|
| DEF Tank | 14.3 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 212 in |
|---|---|
| Max Reach Along Ground | 341 in |
| Max Loading Height | 315 in |
| Max Vertical Wall Digging Depth | 1,743 in |
| Max Cutting Height | 403 in |
| Minimum swing radius | 118 in |
| Max Digging Reach | 336 in |
| Max Digging Reach on Ground | 330 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 229 in |
|---|---|
| Max Vertical Wall Digging Depth | 186 in |
| Max Cutting Height | 420 in |
| Max Loading Height | 330 in |
| Max Reach Along Ground | 359 in |
| Minimum swing radius | 118 in |
| Max Digging Reach | 352 in |
| Max Digging Reach on Ground | 346 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 243 in |
|---|---|
| Max Cutting Height | 426 in |
| Max Loading Height | 342 in |
| Max Vertical Wall Digging Depth | 206 in |
| Max Reach Along Ground | 373 in |
| Minimum swing radius | 118 in |
| Max Digging Reach on Ground | 359 in |
