JCB

JS330NLC

Excavator

Operating Weight
71,053 lb
Max Digging Depth
252 in
Max Digging Depth
269 in
All excavators

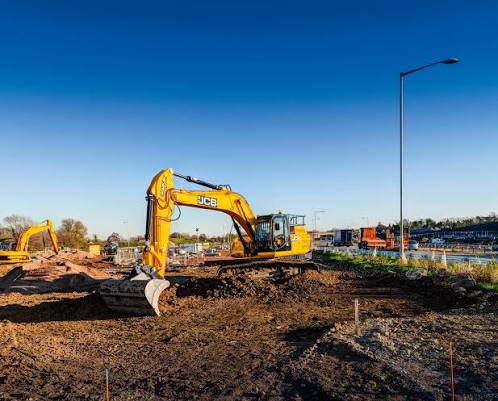

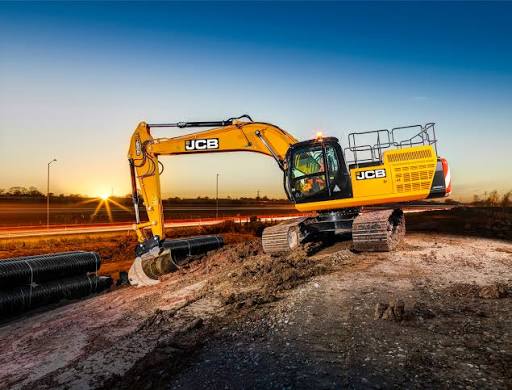

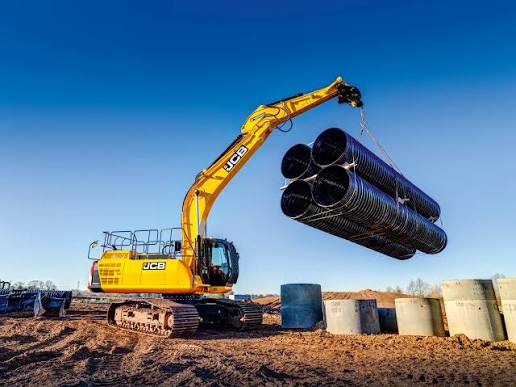

JCB JS330NLC Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

81 data points

Operating Specifications

Operating Specifications specifications
Operating Weight71,053 lb
Fuel Capacity155.9 gal
Hydraulic Pump Flow Capacity153.3 gal/min
Hydraulic System Fluid Capacity113.6 gal
Hydraulic System Relief Valve Pressure4,627 psi
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity10.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.9 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelMTU 6R1000
Displacement470 in³
Power Measured @2,000 rpm
Gross Power281.0 hp
AspirationTurbocharged and intercooled
Max Digging Reach435 in
Diesel Fuel Tank Capacity - Standard Tank12.5 gal
Tier 1 engine: ModelTier 4 Final compliant

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Length of Track on Ground156,103 in
Tail Swing Radius142 in
Width to Outside of Tracks114 in
Removal Counterweight Clearance48 in
Counterweight Clearance48 in
Undercarriage Overall Length190,867 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge90 in
Number of Track Rollers per Side2
Max Travel Speed3.0 mph
Shoe Size24 in
Number of Shoes per Side50
Number of Carrier Rollers per Side9
Drawbar Pull54,904 lb
Track AdjustmentGrease cylinder type.

Brakes & Steering

Brakes & Steering specifications
Service brakeHydraulic counter balance valve.
Brakes TypeFully hydrostatic two speed with autoshift.

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth252 in
Max Reach Along Ground390 in
Max Loading Height264 in
Max Vertical Wall Digging Depth198 in
Max Cutting Height384 in
Shipping Length of Unit437 in
Shipping Height of Unit143 in
Minimum swing radius184 in
Max Digging Reach397 in
Max.Dumping Height268 in

Bucket

Bucket specifications
Reference Bucket Capacity2.00 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity1.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth269 in
Max Vertical Wall Digging Depth222 in
Max Cutting Height394 in
Max Loading Height272 in
Max Reach Along Ground408 in
Shipping Length of Unit432 in
Shipping Height of Unit142 in
Minimum swing radius183 in
Max Digging Reach414 in
Max.Dumping Height276 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth292 in
Max Cutting Height404 in
Max Loading Height283 in
Max Vertical Wall Digging Depth251 in
Max Reach Along Ground432 in
Shipping Length of Unit428 in
Minimum swing radius160 in
Max.Dumping Height287 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth324 in
Max Cutting Height415 in
Max Reach Along Ground461 in
Max Loading Height294 in
Max Vertical Wall Dig Depth281 in
Shipping Length of Unit432 in
Minimum swing radius178 in
Max Digging Reach465 in
Max.Dumping Height298 in

Electrical System

Electrical System specifications
Batteries2 X 12 Volt volts
Alternator—
System24 V
