Hitachi

EX220LC-3

Excavator

Operating Weight
42,770 lb
Max Digging Depth
250 in
Max Digging Depth
275 in
Net Power
155.6 hp
All excavators

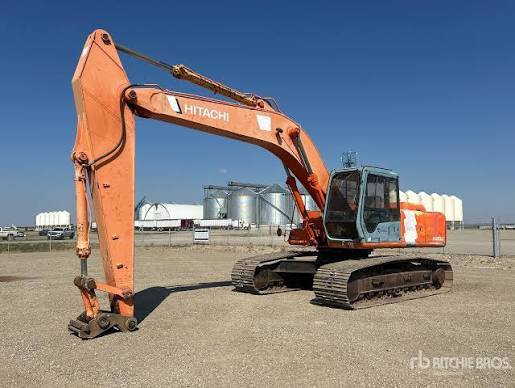

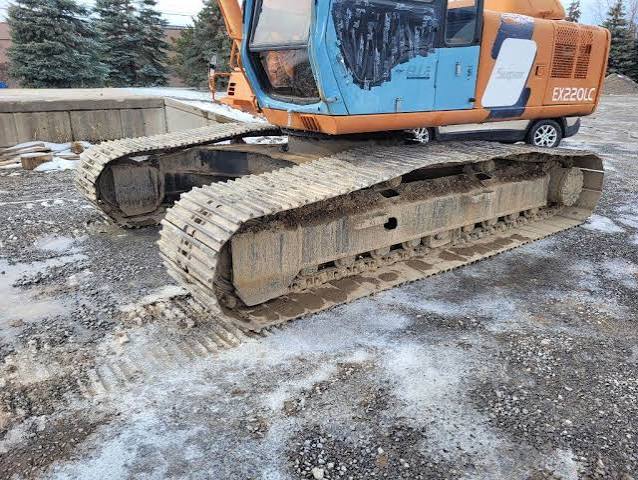

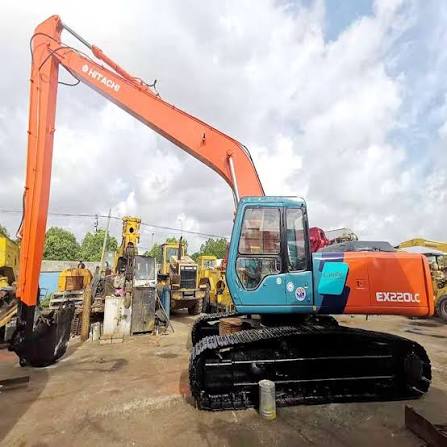

Hitachi EX220LC-3 Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,770 lb
Fuel Capacity81.9 gal
Hydraulic Pump Flow Capacity49.9 gal/min
Hydraulic System Fluid Capacity68.7 gal
Engine Oil Capacity6.9 gal
Cooling System Fluid Capacity7.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.5 gal

Engine

Engine specifications
Engine ModelH06C-T
Displacement396 in³
Power Measured @2,100 rpm
Gross Power158.3 hp
Net Power155.6 hp
AspirationTurbocharged
Torque Measured @1,800 rpm
Max Torque391 lb-ft
Engine MakeHino

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab115 in
Length of Track on Ground183 in
Tail Swing Radius117 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size32 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth250 in
Max Reach Along Ground376 in
Max Loading Height258 in
Max Vertical Wall Digging Depth214 in
Max Cutting Height371 in
Shipping Length of Unit404 in
Shipping Height of Unit128 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth275 in
Max Vertical Wall Digging Depth238 in
Max Cutting Height379 in
Max Loading Height267 in
Max Reach Along Ground398 in
Shipping Length of Unit400 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth300 in
Max Cutting Height394 in
Max Loading Height280 in
Max Vertical Wall Digging Depth267 in
Max Reach Along Ground424 in
Shipping Length of Unit401 in
Shipping Height of Unit130 in
