Caterpillar
318C LN
- Operating Weight
- 42,660 lb
- Max Digging Depth
- 234 in
- Max Digging Depth
- 251 in
- Net Power
- 125.0 hp
1 / 5

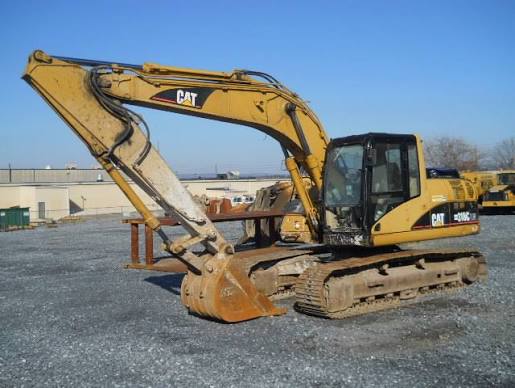

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 42,660 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 50.2 gal/min |
| Hydraulic System Fluid Capacity | 67.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 8.0 gal |
| Cooling System Fluid Capacity | 3.7 gal |
| Swing Drive Fluid Capacity | 2.2 gal |
Engine
| Engine Model | 3066T |
|---|---|
| Displacement | 389 in³ |
| Gross Power | 130.0 hp |
| Net Power | 125.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Length of Track on Ground | 137 in |
| Tail Swing Radius | 101 in |
| Width to Outside of Tracks | 98 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 20 in |
| Drawbar Pull | 45,500 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 234 in |
|---|---|
| Max Reach Along Ground | 341 in |
| Max Loading Height | 244 in |
| Max Vertical Wall Digging Depth | 191 in |
| Max Cutting Height | 352 in |
| Shipping Length of Unit | 350 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 251 in |
|---|---|
| Max Vertical Wall Digging Depth | 214 in |
| Max Cutting Height | 365 in |
| Max Loading Height | 254 in |
| Max Reach Along Ground | 359 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 124 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 271 in |
|---|---|
| Max Cutting Height | 380 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 238 in |
| Max Reach Along Ground | 379 in |
| Shipping Length of Unit | 348 in |
| Shipping Height of Unit | 138 in |
