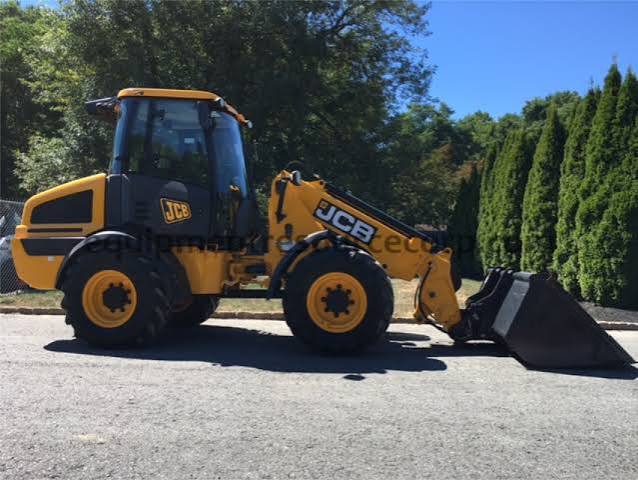

JCB
Pel-Job
EL451
Wheel Loader
5 specifications
1 / 5
Image 1 of 5
Specifications
32 data points
Engine
| Engine Model | JCB Diesel by Kohler KDI 2504 TCR |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 74.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Engine Type | 4 stroke Electronic Common Rail |
| Emission level | Stage 3B & T4F |
| Capacity | 0.7 gal |
Weights
| Front axle weight | 5,803 lb |
|---|---|
| Rear axle weight | 8,516 lb |
Hydraulic System
| Pump Flow Capacity | 23.6 gal/min |
|---|---|
| Pump Type | Single Gear Pump |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 104 in |
| Wheelbase | 88 in |
| Overall Length | 236 in |
| Width Over Tires | 76 in |
| Hinge Pin - Max Height | 189 in |
| Turning Radius - Inside | 83 in |
| Wheel track | 59 in |
| Center of front axle to counterweight (Pusher) | 52 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Transmission Type | Hydrostatic |
Fluid Capacities
| Fuel Tank | 21.2 gal |
|---|---|
| Engine Oil | 3.0 gal |
| Hydraulic oil tank | 18.5 gal |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Bucket Width | 79 in |
Electrical System
| Alternator | — |
|---|---|
| Battery capacity | 100 Ah |
Axles
| Axle oil front | 1.2 gal |
|---|---|
| Axle oil rear | 1.6 gal |
