JCB

TM320S

Wheel Loader

Operating Weight
17,990 lb
Gross Power
145.0 hp
Net Power
135.0 hp
All wheel loaders

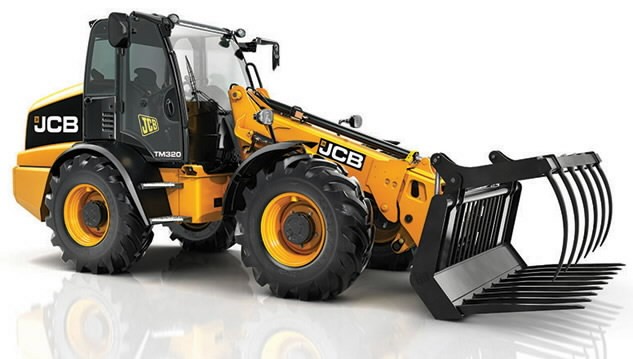

JCB TM320S Wheel Loader
1 / 5
Image 1 of 5
Image: stokker.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,990 lb

Engine

Engine specifications
Engine ModelEcoMAX
Power Measured @2,200 rpm
Gross Power145.0 hp
Net Power135.0 hp
Number of Cylinders4
AspirationTurbocharged-charge cooled
Torque Measured @1,500 rpm
Engine MakeJCB
Bore4 in
Stroke5 in
Capacity1.3 gal

Weights

Weights specifications
Front axle weight6,019 lb
Rear axle weight12,059 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Pump TypeVariable displacement piston pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab107 in
Wheelbase101 in
Overall Length250 in
Width Over Tires94 in
Length with Bucket on Ground250 in
Hinge Pin - Max Height212 in
Turning Radius - Inside79 in
Dump Height178 in
Dump reach37 in
Wheel track74 in
Center of front axle to counterweight (Pusher)85 in
Height to top of boom pivot72 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Transmission TypePowershift
MakeJCB

Fluid Capacities

Fluid Capacities specifications
Fuel Tank42.3 gal
Engine Oil3.7 gal
Hydraulic oil tank25.7 gal
DEF Tank7.7 gal
Dropbox0.4 gal

Electrical System

Electrical System specifications
Voltage12 V
Alternator—
Battery capacity120 Ah
