JCB

VM115PD

Smooth Drum Roller

Operating Weight
25,574 lb
Max Speed
6.6 mph
Drum Width
83 in
Gross Power
125.0 hp
All smooth drum rollers

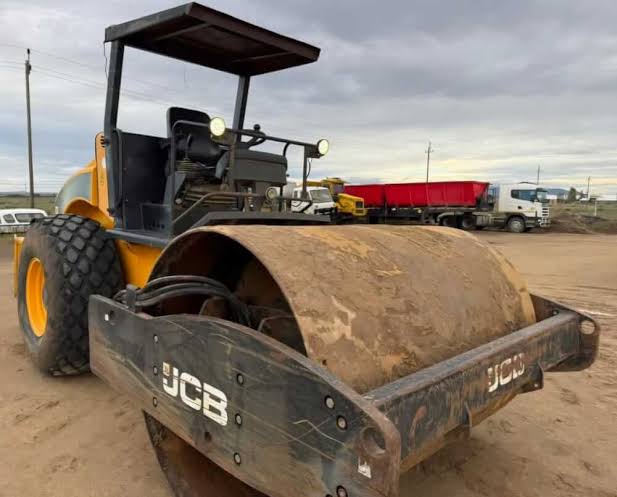

JCB VM115PD Smooth Drum Roller
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,574 lb
Max Speed6.6 mph
Fuel Capacity79.3 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity21.2 gal
Engine Oil Capacity2.9 gal
Alternator Supplied Amperage95 A
Cooling System Fluid Capacity3.7 gal

Engine

Engine specifications
Engine ModelJCB444TA
Displacement268 in³
Power Measured @2,200 rpm
Gross Power125.0 hp
Number of Cylinders4
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab117 in
Wheelbase9 in
Width Over Tires89 in
Overall Length w/o Blade215 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26/12 Tractor Tire Tread

Drum

Drum specifications
Drum Width83 in
Drum Diameter59 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High39,566 lb
Pad Height4 in
Number of Pads132
Vibratory Frequency 236 vpm
