JCB
BOMAG
BW 191 ADO-5

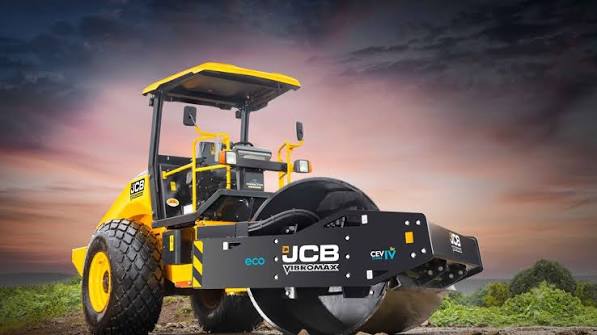

Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 29,322 lb |
|---|---|
| Operating weight ROPS | 24,030 lb |
| Operating weight Cabin | 24,912 lb |
| Travel Speed | 6.9 mph |
| Amplitude | 0 in |
| Centrifugal force | 57,551 lb |
| Inside Turning Radius | 133 in |
| Smooth drum_Static linear load | 65 lb |
Engine
| Engine Model | 444/EcoMAX |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 4 |
| Engine Make | JCB |
| Stroke | 5 in |
| Bore | 4 in |
| Torque | 406 lb-ft |
| Cooling system | Water |
| Emissions compliance | T4i Stage IIIb |
| Performance | 125.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 115 in |
| Overall Width | 89 in |
| Height - Top of ROPS/FOPS | 119 in |
| Height | 89 in |
| front Departure angle | 46 ° |
| Rear Departure Angle | 32 |
| Total travel length | 224 in |
| Axle to rear face | 69 in |
Fluid Capacities
| Fuel Tank | 75.3 gal |
|---|---|
| Engine Oil | 3.7 gal |
| Hydraulic oil tank | 19.9 gal |
| Gear oil | 2.2 gal |
Drum
| Drum Width | 83 in |
|---|---|
| Drum Diameter | 59 in |
| Drum thickness | 1 in |
Electrical System
| Alternator | 60 |
|---|---|
| Battery capacity | 120 Ah |
| Voltage | — |
