JCB

VM75PD

Smooth Drum Roller

Operating Weight
16,755 lb
Max Speed
6.9 mph
Drum Width
69 in
Gross Power
80.0 hp
All smooth drum rollers

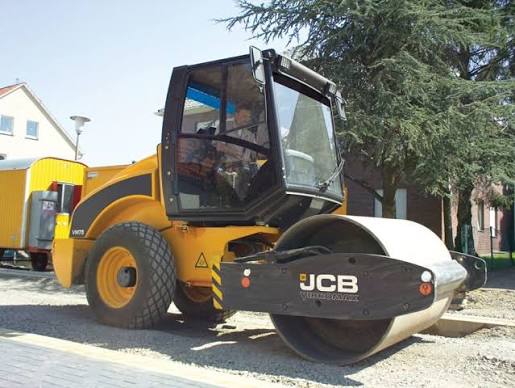

JCB VM75PD Smooth Drum Roller
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,755 lb
Max Speed6.9 mph
Fuel Capacity60.8 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity21.2 gal
Engine Oil Capacity2.2 gal
Alternator Supplied Amperage60 A
Cooling System Fluid Capacity3.7 gal

Engine

Engine specifications
Engine ModelB 3.3
Displacement199 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Number of Cylinders4
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab113 in
Wheelbase8 in
Width Over Tires74 in
Overall Length w/o Blade193 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24 Dyna Torque II

Drum

Drum specifications
Drum Width69 in
Drum Diameter48 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High21,582 lb
Pad Height3 in
Number of Pads100
Vibratory Frequency 236 vpm
