JCB

VMT390

Smooth Drum Roller

Operating Weight
8,598 lb
Max Speed
6.8 mph
Drum Width
51 in
Gross Power
46.6 hp
All smooth drum rollers

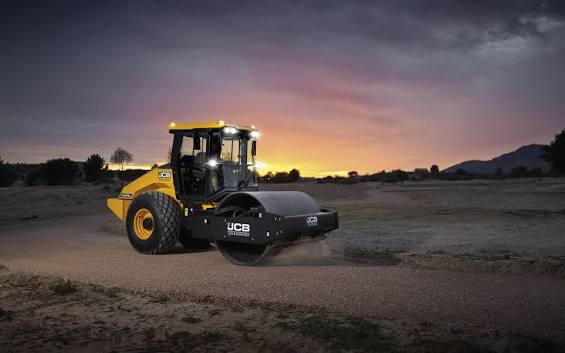

JCB VMT390 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,598 lb
Max Speed6.8 mph
Fuel Capacity20.1 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity15.9 gal
Engine Oil Capacity2.6 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine ModelV 2203
Displacement134 in³
Power Measured @2,800 rpm
Gross Power46.6 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab76 in
Wheelbase8 in
Overall Length9 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 155 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High10,791 lb
Static Linear Load7 lb-ft
