JLG
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5

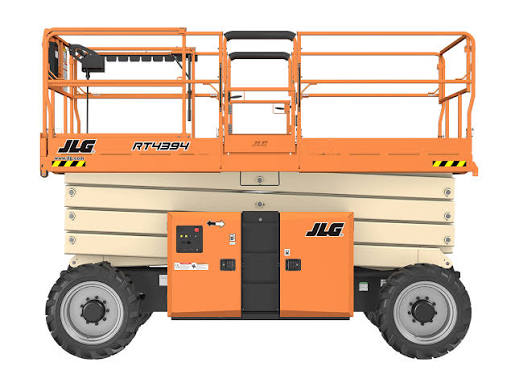

Image 1 of 5
Specifications
23 data points
Engine
| Engine Model | LRG-425 |
|---|---|
| Gross Power | 82.0 hp |
| Fuel Type | dual fuel |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 117 in |
| Overall Length | 13 in |
| Overall Width | 95 in |
| Turning Radius | 234 in |
| Height w/o Rails | 86 in |
Performance
| Operating Weight | 15,300 lb |
|---|---|
| Max Speed | 4.0 mph |
| Tire Size | 33x15.5-16.5 |
| Hydraulic System Fluid Capacity | 40.0 gal |
| Tire Fill/Type | Superwide Tires |
| Fuel Capacity | 30.1 gal |
Platform
| Max Platform Height | 517 in |
|---|---|
| Max Platform Weight Capacity | 1,499 lb |
| Platform Inner Length | 150 in |
| Platform Inner Width | 86 in |
| Lift Time | 40.0 s |
| Deck Extension | 48 in |
| Lower Time | 43.0 s |
| Height of Rails | 44 in |
