JLG
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5

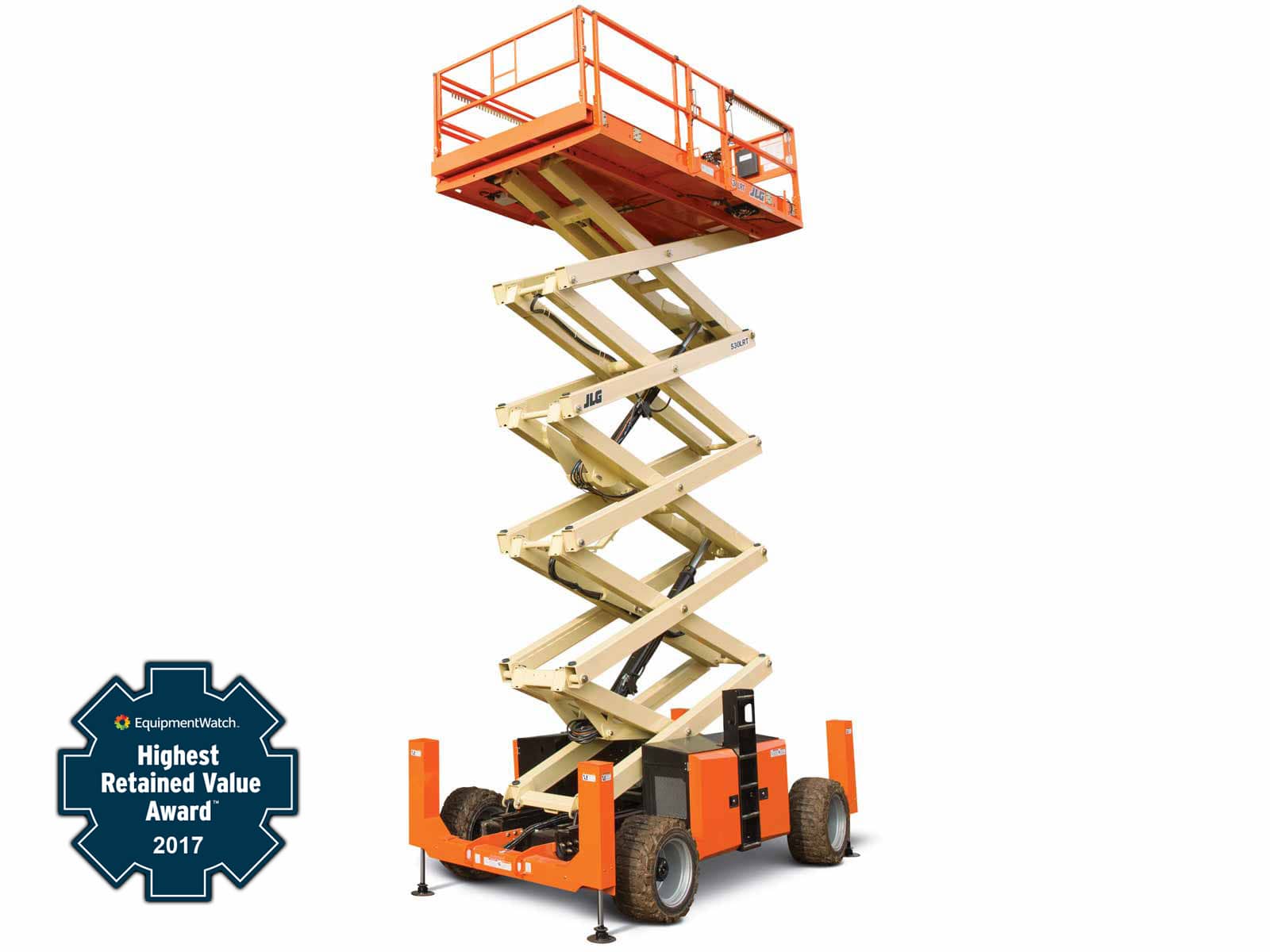

Image 1 of 5
Specifications
25 data points
Engine
| Engine Model | Kubota D1305 |
|---|---|
| Displacement | 77 in³ |
| Gross Power | 24.8 hp |
| Fuel Type | Diesel |
| Fuel tank | 22.0 gal |
Dimensions
| Ground Clearance | 1 in |
|---|---|
| Wheelbase | 119 in |
| Overall Length | 17 in |
| Overall Width | 93 in |
| Overall Height | 121 in |
| Turning Radius | 234 in |
| Height w/ Rails | 95 in |
Performance
| Operating Weight | 17,000 lb |
|---|---|
| Tire Size | 12 x 16.5 |
| Hydraulic System Fluid Capacity | 32.0 gal |
| Tire Fill/Type | FF |
| Fuel Capacity | 22.0 gal |
| Gradeability | 40.0 % |
| Platform Capacity | 1,500 lb |
| Drive Speed - Platform Lowered | 3.5 mph |
| Drive Speed - Platform Elevated | 0.5 mph |
Platform
| Lift Time | 59.0 s |
|---|---|
| Lower Time | 55.0 s |
| Platform Railing Height | 636 in |
| Platform Capacity - Extension | 500 lb |
