JLG

660SJC

Aerial Lift

Max Platform Height
789 in
Overall Length
36 in
Overall Width
98 in
All aerial lifts

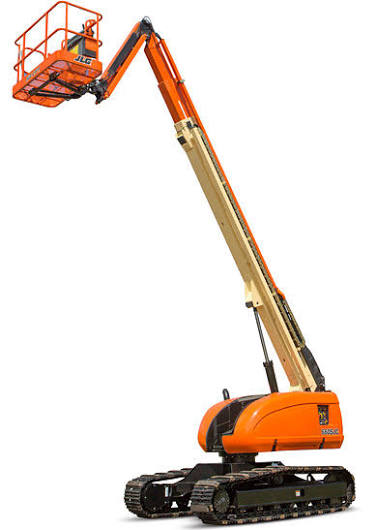

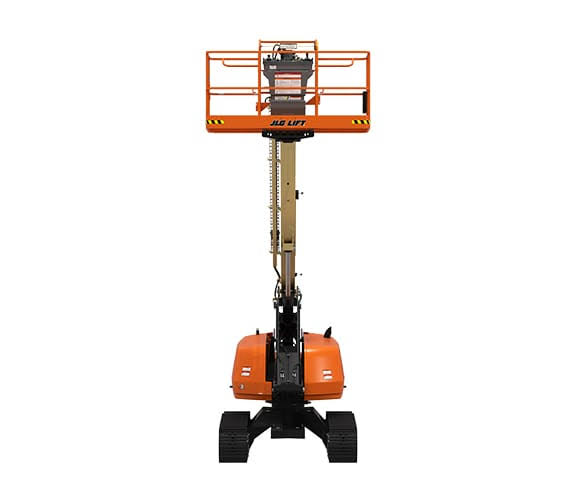

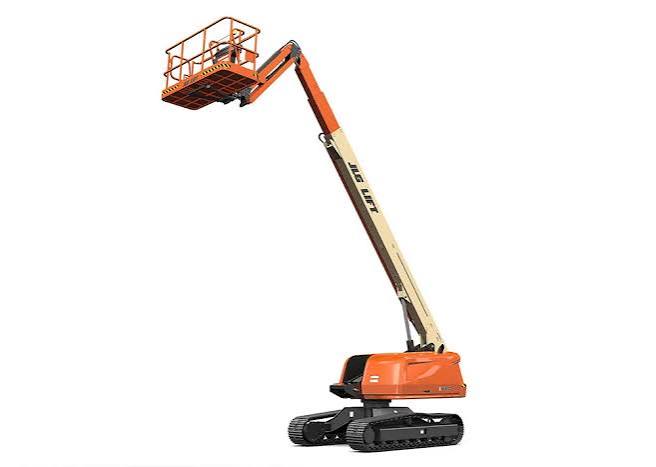

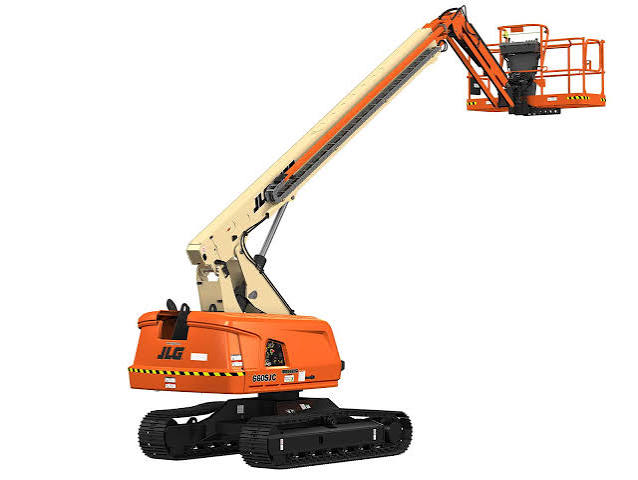

JLG 660SJC Aerial Lift
1 / 5
Image 1 of 5
Image: easternlifttruck.com

Specifications

23 data points

Engine

Engine specifications
Fuel TypeDiesel
System Voltage12 V
Maximum Ground Bearing Pressure7 psi
Diesel Engine TypeDeutz TD2.9L4 Tier4 Final

Dimensions

Dimensions specifications
Ground Clearance15 in
Overall Length36 in
Overall Width98 in
Overall Height - mast lowered98 in
Track Width22 in
Platform Dimension B96 in
Platform Dimension A36 in
Tailswing Radius48 in

Performance

Performance specifications
Operating Weight29,339 lb
Hydraulic System Fluid Capacity34.0 gal
Fuel Capacity31.0 gal
Gradeability55.0 %
Drive Speed1.6 mph
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height789 in
Max Horizontal Reach685 in
Platform Capacity - Unrestricted550 lb
Platform Capacity - Restricted750 lb
