JLG

800A

Aerial Lift

Max Platform Height
960 in
Overall Length
37 in
Overall Width
97 in
All aerial lifts

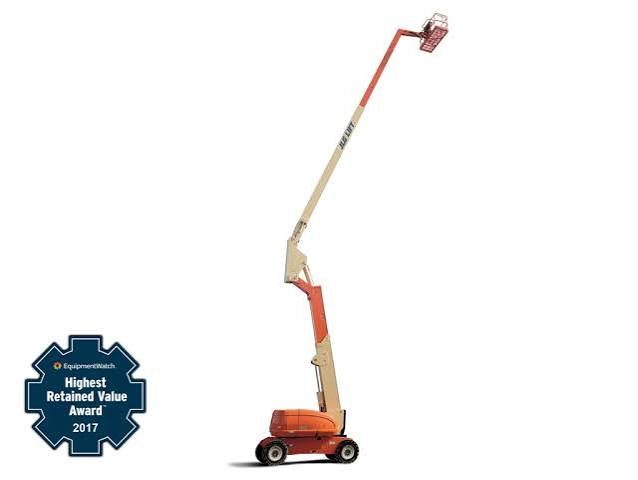

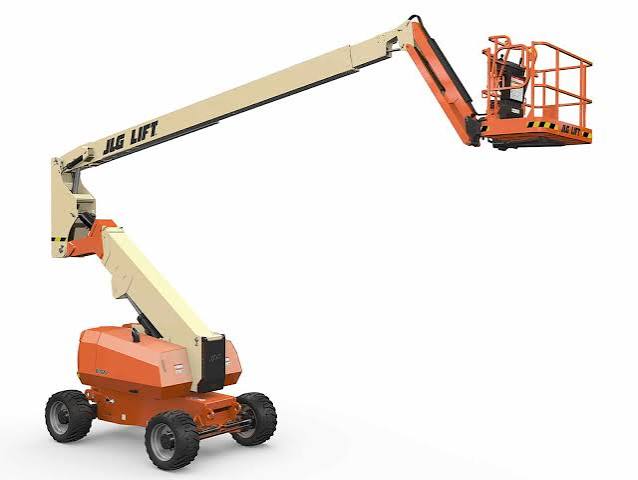

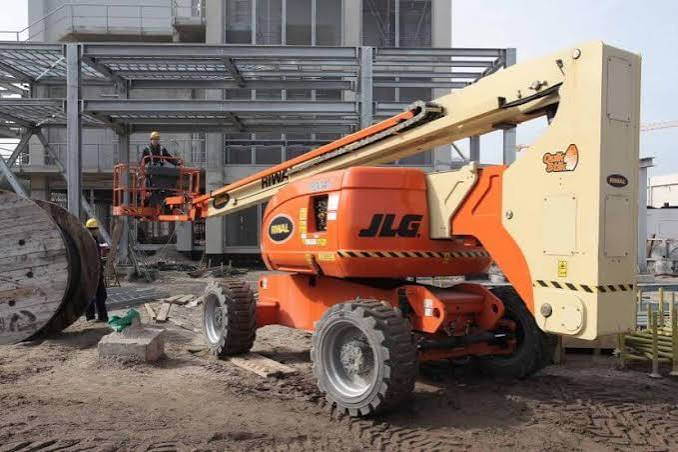

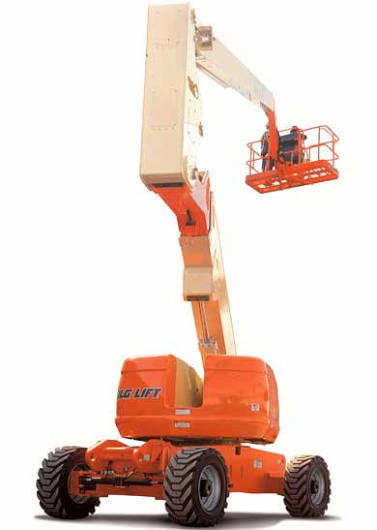

JLG 800A Aerial Lift
1 / 5
Image 1 of 5
Image: fairchildequipment.com

Specifications

39 data points

Engine

Engine specifications
Engine ModelF4M2011
Gross Power64.4 hp
Fuel TypeDiesel
System Voltage12 V
Maximum Ground Bearing Pressure76 psi
Diesel Engine TypeDEUTZ TD 2.9L Tier 4 Final
Dual Fuel Engine TypeFord MSG425
Diesel Engine Power67.0 hp
Dual Fuel Engine Power84.0 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase121 in
Overall Length37 in
Overall Width97 in
Overall Height - mast lowered119 in
Stowed Width96 in
Stowed Height109 in
Boom Type/SizeAT/80 ft (0.00 m)
Platform Dimension B96 in
Platform Dimension A36 in
Up and Over Height385 in

Transmission

Transmission specifications
4WDavail

Tires & Wheels

Tires & Wheels specifications
Tire Size385/65x19.5 [445/55x19.5-4wd]

Performance

Performance specifications
Operating Weight34,130 lb
Max Speed3.0 mph
Tire Size445/55D x 19.5
Hydraulic System Fluid Capacity40.0 gal
Tire Fill/TypePneumatic
Fuel Capacity39.0 gal
Drive Speed3.0 mph
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height960 in
Max Platform Weight Capacity1,001 lb
Platform Inner Length96 in
Platform Inner Width36 in
Max Horizontal Reach636 in
Platform Rotation180 °
Platform Capacity - Unrestricted500 lb
Platform Capacity - Restricted1,000 lb
