JLG

1350SJP

Aerial Lift

Max Platform Height
1,620 in
Overall Length
577 in
Overall Width
98 in
All aerial lifts

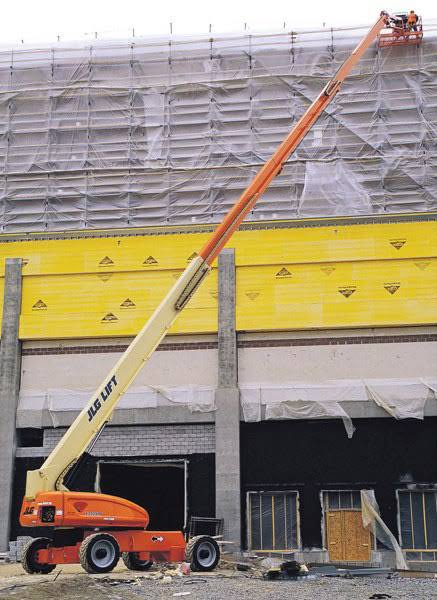

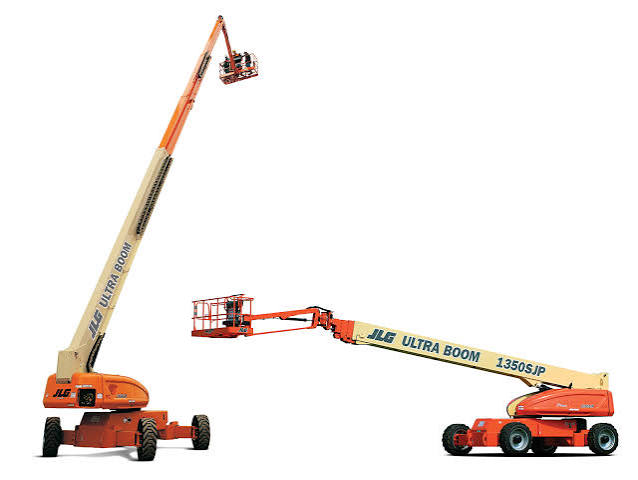

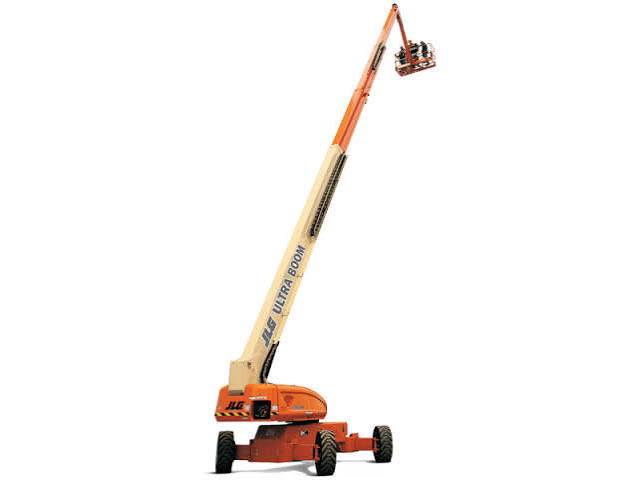

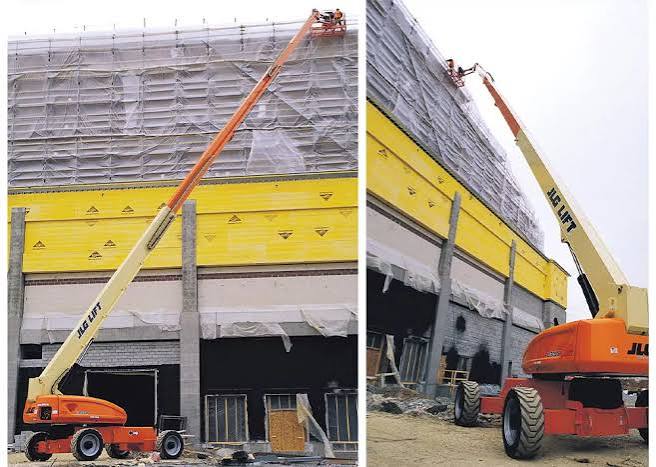

JLG 1350SJP Aerial Lift
1 / 5
Image 1 of 5
Image: conger.com

Specifications

27 data points

Engine

Engine specifications
System Voltage12 V
Maximum Ground Bearing Pressure107 psi
Diesel Engine TypeDEUTZ TCD2.9L4 Tier 4 Final 74.2

Dimensions

Dimensions specifications
Ground Clearance0 in
Overall Length577 in
Overall Width98 in
Transport Length458 in
Overall Height - mast lowered120 in
Platform Dimension A36 in
Platform Dimension B96 in
Tailswing Radius67 in
Overall Width (Axles Extended)151 in

Performance

Performance specifications
Operating Weight45,000 lb
Tire Size445/500710 Foam-Filled
Hydraulic System Fluid Capacity55.0 gal
Fuel Capacity31.0 gal
Gradeability45.0 %
Drive Speed3.3 mph
Axle Oscillation12 in
Turning Radius - Outside (axles retracted)271 in
Turning Radius - Outside (axles extended)233 in

Swing System

Swing System specifications
Swing360 °
Swing TypeContinuous

Platform

Platform specifications
Max Platform Height1,620 in
Max Horizontal Reach960 in
Platform Capacity - Unrestricted500 lb
Platform Capacity - Restricted1,000 lb
