Snorkel

TB126J

Aerial Lift

Max Platform Height
1,512 in
Overall Length
43 in
Overall Width
103 in
All aerial lifts

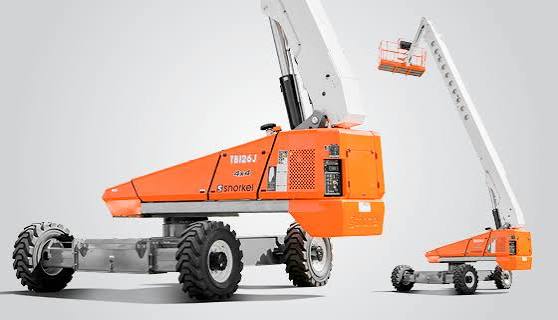

Snorkel TB126J Aerial Lift
1 / 5
Image 1 of 5
Image: conger.com

Specifications

23 data points

Engine

Engine specifications
Fuel Typegas/diesel

Dimensions

Dimensions specifications
Wheelbase145 in
Overall Length43 in
Overall Width103 in
Overall Height - mast lowered122 in
Stowed Width102 in
Stowed Height124 in
Boom Type/SizeST ft (0.00 m)
Platform Size96 in

Transmission

Transmission specifications
4WDStd

Tires & Wheels

Tires & Wheels specifications
Tire Size18x22.5

Performance

Performance specifications
Operating Weight41,839 lb
Max Speed3.0 mph
Tire Size15x22.5
Hydraulic System Fluid Capacity89.9 gal
Tire Fill/TypeFoam
Fuel Capacity50.1 gal

Capacity

Capacity specifications
Platform Capacity500 lb

Platform

Platform specifications
Max Platform Height1,512 in
Max Platform Weight Capacity500 lb
Platform Inner Length96 in
Platform Inner Width30 in
Max Horizontal Reach756 in
