JLG

E33MJ

Aerial Lift

Max Platform Height
394 in
Overall Length
13 in
Overall Width
48 in
All aerial lifts

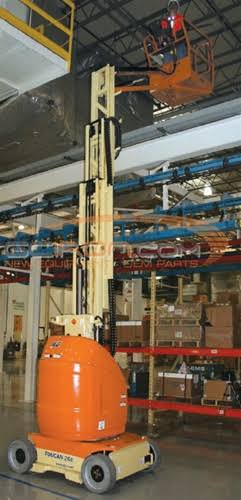

JLG E33MJ Aerial Lift
1 / 5
Image 1 of 5
Image: vzsolutions.com

Specifications

17 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours930
Charger Amps55

Dimensions

Dimensions specifications
Ground Clearance3 in
Wheelbase64 in
Overall Length13 in
Overall Width48 in
Turning Radius126 in
Overall Height - mast lowered79 in

Performance

Performance specifications
Operating Weight11,574 lb
Max Speed2.3 mph
Tire Size18x7x12.12

Platform

Platform specifications
Max Platform Height394 in
Max Platform Weight Capacity500 lb
Platform Inner Length43 in
Platform Inner Width28 in
Max Horizontal Reach175 in
