JLG

E450 AJ

Aerial Lift

Max Platform Height
540 in
Overall Length
21 in
Overall Width
71 in
All aerial lifts

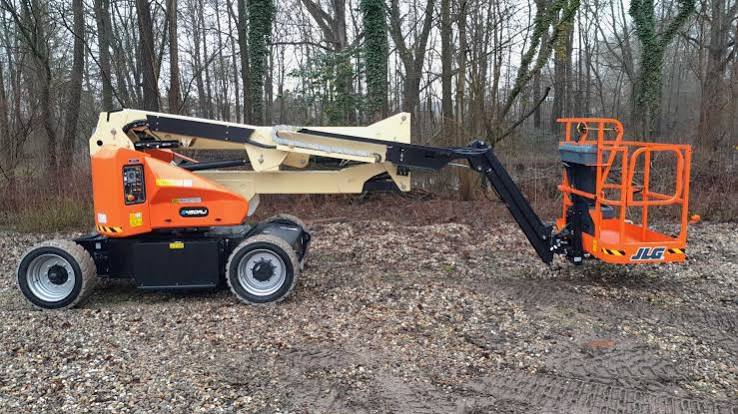

JLG E450 AJ Aerial Lift
1 / 5
Image 1 of 5
Image: fairchildequipment.com

Specifications

29 data points

Engine

Engine specifications
System Voltage48 V
Battery Amp Hours370
Number of Batteries8

Hydraulic System

Hydraulic System specifications
Hydraulic Reservoir4.0 gal

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase80 in
Overall Length21 in
Overall Width71 in
Turning Radius125 in
Overall Height - mast lowered80 in
Platform Dimension B60 in
Platform Dimension A31 in

Performance

Performance specifications
Operating Weight14,401 lb
Max Speed3.3 mph
Tire Size240/55-17.5
Tire Fill/Typepneumatic
Gradeability30.0 %
Drive Speed3.2 mph
Platform Capacity500 lb
Swing360 °
Jib - Range of articulation141 °

Platform

Platform specifications
Max Platform Height540 in
Max Platform Weight Capacity500 lb
Platform Inner Length60 in
Platform Inner Width30 in
Max Working Height304 in
Max Horizontal Reach287 in
Platform Rotation180 °
Platform Capacity - Unrestricted500 lb
