JLG

E600J

Aerial Lift

Max Platform Height
724 in
Overall Length
31 in
Overall Width
86 in
All aerial lifts

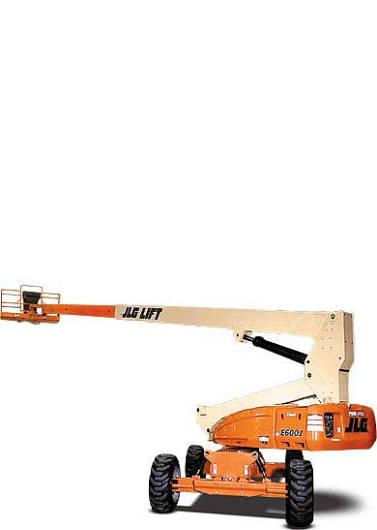

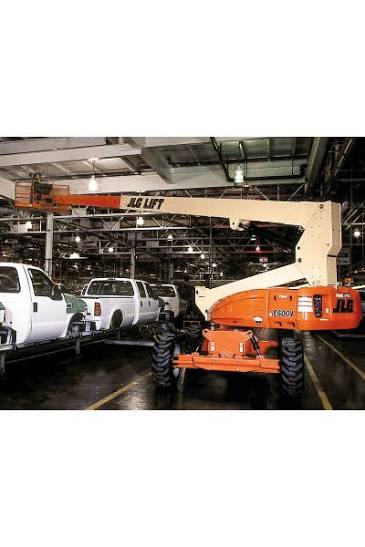

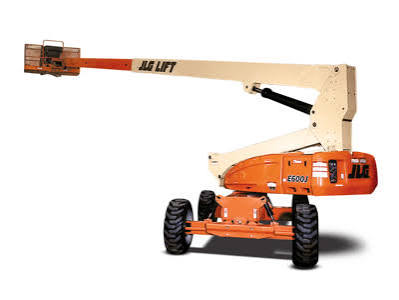

JLG E600J Aerial Lift
1 / 5
Image 1 of 5
Image: liftincorporated.com

Specifications

29 data points

Engine

Engine specifications
System Voltage48 V
Battery Amp Hours415
Number of Batteries8

Dimensions

Dimensions specifications
Ground Clearance1 in
Wheelbase108 in
Overall Length31 in
Overall Width86 in
Overall Height101 in
Turning Radius185 in
Overall Height - mast lowered101 in
Platform Dimension B73 in
Platform Dimension A31 in
Tailswing Radius48 in

Performance

Performance specifications
Operating Weight15,200 lb
Max Speed3.0 mph
Tire Size36 x 14-22.5
Hydraulic System Fluid Capacity15.0 gal
Tire Fill/TypePneumatic non marking
Platform Capacity500 lb
Drive Speed - Platform Lowered3.0 mph
Swing TypeNon-Continuous
Jib - Range of articulation145 °

Platform

Platform specifications
Max Platform Height724 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width30 in
Max Horizontal Reach520 in
Platform Rotation180 °
Platform Railing Height724 in
