JLG

E600JP

Aerial Lift

Max Platform Height
725 in
Overall Length
400 in
Overall Width
86 in
All aerial lifts

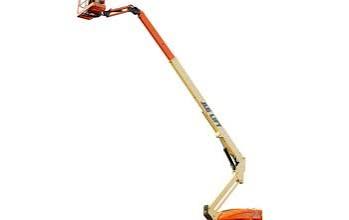

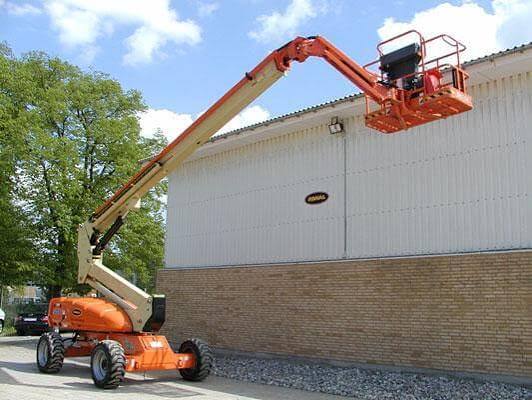

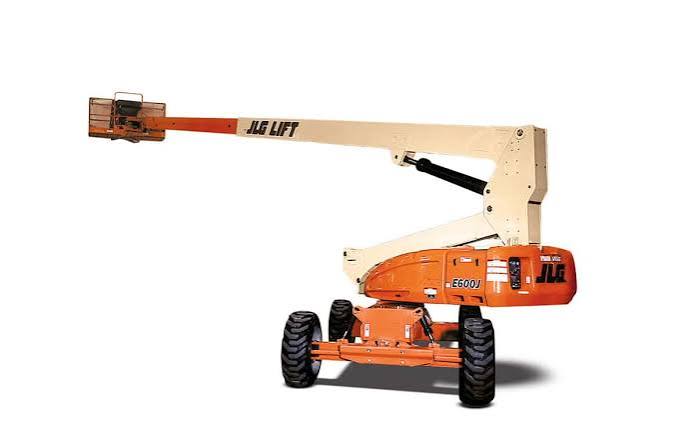

JLG E600JP Aerial Lift
1 / 5
Image 1 of 5
Image: liftincorporated.com

Specifications

30 data points

Engine

Engine specifications
System Voltage48 V
Battery Amp Hours415
Number of Batteries8

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase108 in
Overall Length400 in
Overall Width86 in
Overall Height101 in
Turning Radius185 in
Overall Height - mast lowered101 in
Platform Dimension A30 in
Platform Dimension B73 in
Tailswing Radius48 in

Performance

Performance specifications
Operating Weight15,201 lb
Max Speed3.0 mph
Tire Size36 x 14-22.5
Hydraulic System Fluid Capacity15.0 gal
Tire Fill/TypePneumatic non marking
Platform Capacity500 lb
Swing400 °
Drive Speed - Platform Lowered3.0 mph
Swing TypeNon-Continuous
Jib - Range of articulation145 °

Platform

Platform specifications
Max Platform Height725 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width30 in
Max Horizontal Reach534 in
Platform Rotation180 °
Platform Railing Height725 in
