JLG

M450AJ

Aerial Lift

Max Platform Height
540 in
Overall Length
21 in
Overall Width
71 in
All aerial lifts

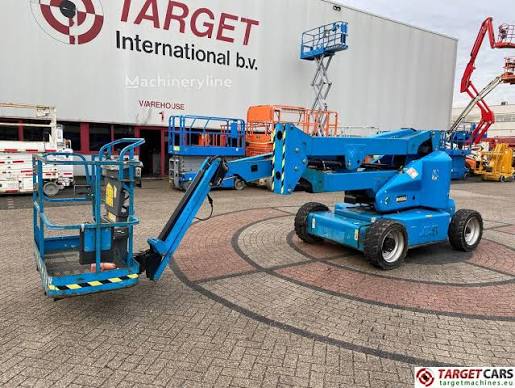

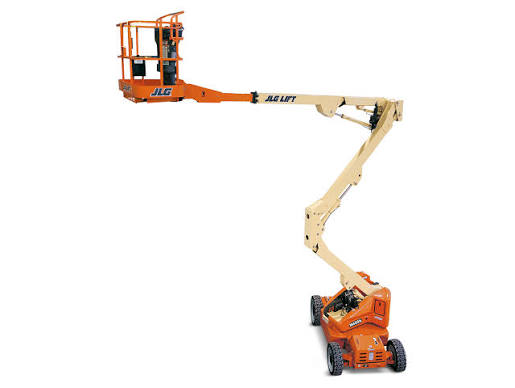

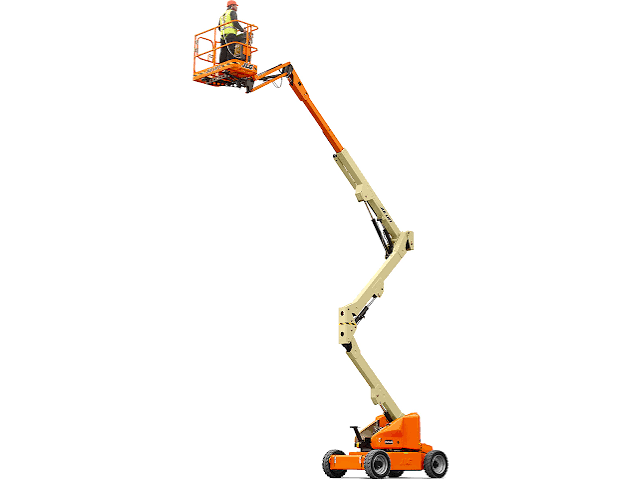

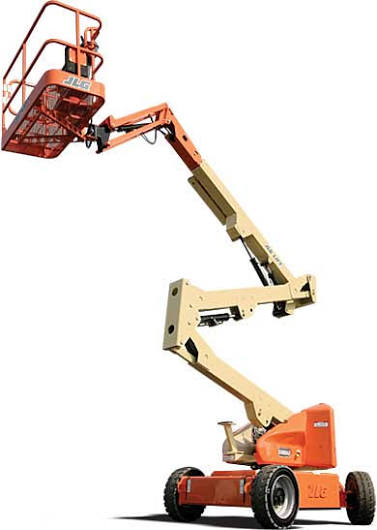

JLG M450AJ Aerial Lift
1 / 5
Image 1 of 5
Image: horizonplatforms.co.uk

Specifications

26 data points

Engine

Engine specifications
Engine ModelKubota
Gross Power6.7 hp
Fuel TypeDiesel
System Voltage48 V
Number of Batteries8

Hydraulic System

Hydraulic System specifications
Hydraulic Reservoir4.0 gal

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase80 in
Overall Length21 in
Overall Width71 in
Turning Radius125 in
Overall Height - mast lowered80 in
Platform Dimension B60 in
Platform Dimension A31 in

Performance

Performance specifications
Operating Weight14,700 lb
Tire Size240/55-17.5
Tire Fill/TypePnuematic
Fuel Capacity4.0 gal
Gradeability30.0 %
Drive Speed3.2 mph
Platform Capacity500 lb
Swing260 °
Jib - Range of articulation141 °

Platform

Platform specifications
Max Platform Height540 in
Max Working Height304 in
Max Horizontal Reach287 in
