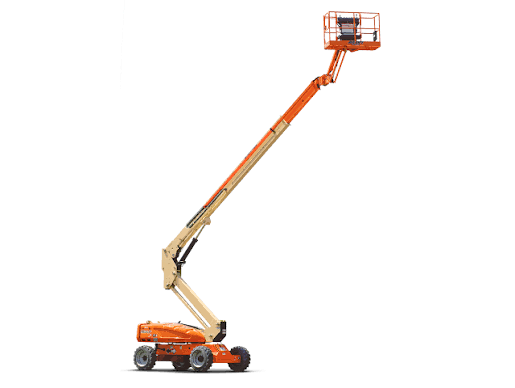

JLG
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Engine
| Engine Model | Kubota |
|---|---|
| System Voltage | 48 V |
| Battery Amp Hours | — |
| Number of Batteries | 8 |
| Fuel tank | 13.0 gal |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 108 in |
| Overall Length | 369 in |
| Overall Width | 86 in |
| Overall Height | 101 in |
| Turning Radius | 185 in |
| Overall Height - mast lowered | 101 in |
| Platform Dimension B | 73 in |
| Platform Dimension A | 30 in |
| Tailswing Radius | 108 in |
Performance
| Operating Weight | 15,500 lb |
|---|---|
| Max Speed | 3.0 mph |
| Tire Size | 36 x 14-22.5 |
| Hydraulic System Fluid Capacity | 15.0 gal |
| Tire Fill/Type | Pneumatic non marking |
| Fuel Capacity | 13.0 gal |
| Platform Capacity | 500 lb |
| Swing | 400 ° |
| Drive Speed - Platform Lowered | 3.0 mph |
| Swing Type | Non-Continuous |
| Jib - Range of articulation | 145 ° |
Platform
| Max Platform Height | 724 in |
|---|---|
| Max Platform Weight Capacity | 500 lb |
| Platform Inner Length | 72 in |
| Platform Inner Width | 30 in |
| Max Horizontal Reach | 520 in |
| Platform Rotation | 180 ° |
| Platform Railing Height | 724 in |
