John Deere

15

Mini Excavator

Operating Weight
2,930 lb
Max Digging Depth
79 in
Net Power
14.5 hp
All mini excavators

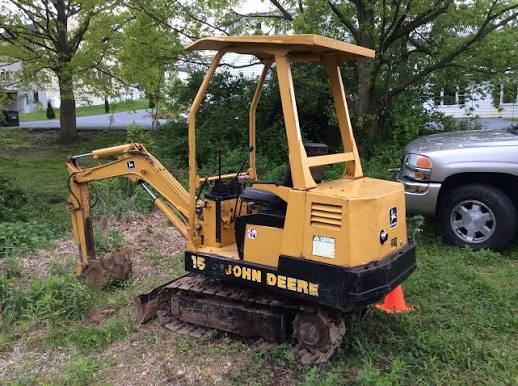

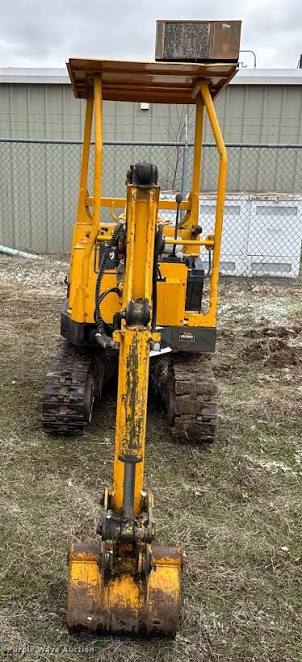

John Deere 15 Mini Excavator
1 / 5
Image 1 of 5
Image: equipmentworld.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,930 lb
Fuel Capacity5.8 gal
Hydraulic Pump Flow Capacity10.7 gal/min
Hydraulic System Fluid Capacity11.1 gal
Hydraulic System Relief Valve Pressure22 psi
Cooling System Fluid Capacity0.7 gal

Engine

Engine specifications
Engine Model3TTNA72-UJB
Displacement54 in³
Power Measured @2,250 rpm
Net Power14.5 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance100 in
Height - Top of Cab84 in
Length of Track on Ground54 in
Tail Swing Radius44 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge30 in
Number of Track Rollers per Side3
Max Travel Speed1.3 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth79 in
Max Reach Along Ground135 in
Max Vertical Wall Digging Depth79 in
Shipping Length of Unit138 in
Shipping Height of Unit83 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
