John Deere

190E

Excavator

Operating Weight
16,300 lb
Max Digging Depth
165 in
Max Digging Depth
183 in
Net Power
55.0 hp
All excavators

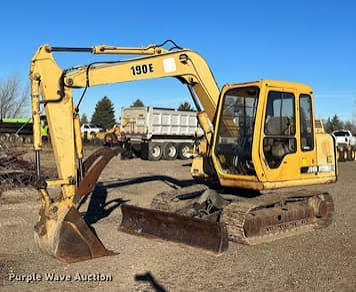

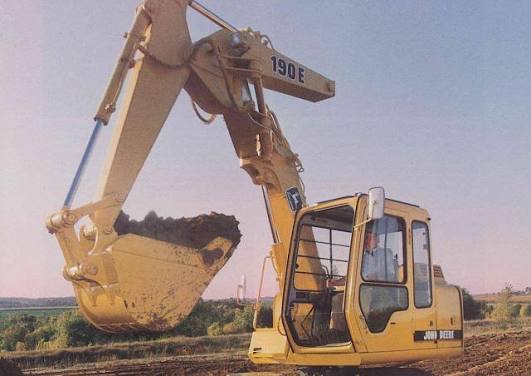

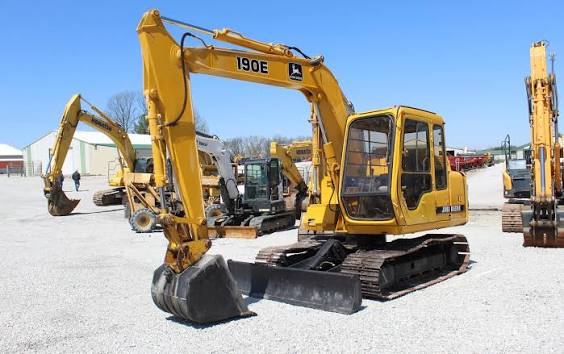

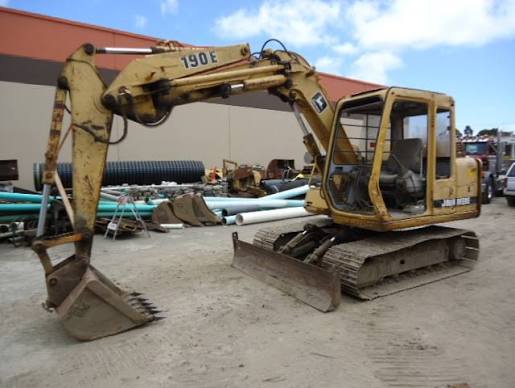

John Deere 190E Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,300 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity6.2 gal/min
Hydraulic System Fluid Capacity17.5 gal
Hydraulic System Relief Valve Pressure3,770 psi
Engine Oil Capacity9.0 gal
Cooling System Fluid Capacity11.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.5 gal
Alternator Supplied Amperage42 A

Engine

Engine specifications
Engine Model190E / 4039D
Displacement239 in³
Gross Power60.0 hp
Net Power55.0 hp
Max Torque153 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab102 in
Tail Swing Radius69 in
Width to Outside of Tracks85 in
Removal Counterweight Clearance69 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side1
Max Travel Speed3.1 mph
Number of Shoes per Side37
Number of Carrier Rollers per Side5
Drawbar Pull10,360 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth165 in
Max Reach Along Ground244 in
Max Loading Height202 in
Max Vertical Wall Digging Depth139 in
Max Cutting Height162 in
Shipping Length of Unit250 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed15 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth183 in
Max Vertical Wall Digging Depth161 in
Max Cutting Height299 in
Max Loading Height215 in
Max Reach Along Ground253 in
Shipping Length of Unit269 in
