John Deere

200C LC Super Long Front

Excavator

Operating Weight
48,430 lb
Max Digging Depth
456 in
Net Power
141.0 hp
All excavators

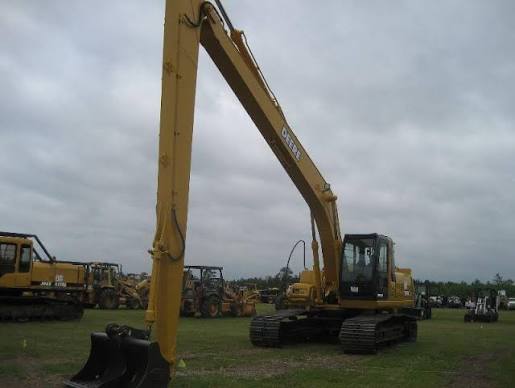

John Deere 200C LC Super Long Front Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight48,430 lb
Fuel Capacity95.2 gal
Hydraulic Pump Flow Capacity115.8 gal/min
Hydraulic System Fluid Capacity34.0 gal
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,150 rpm
Net Power141.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab117 in
Length of Track on Ground145 in
Tail Swing Radius108 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size32 in
Number of Carrier Rollers per Side2
Drawbar Pull42,420 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth456 in
Max Reach Along Ground607 in
Max Loading Height444 in
Shipping Length of Unit472 in
Shipping Height of Unit117 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
