Kato

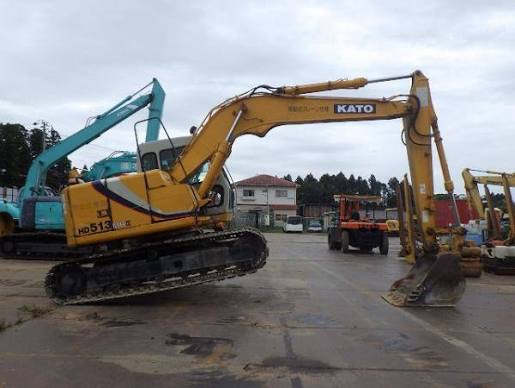

HD513MRIII
- Operating Weight
- 29,101 lb
- Max Digging Depth
- 204 in
- Max Digging Depth
- 221 in
- Net Power
- 91.2 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 29,101 lb |
|---|---|
| Fuel Capacity | 55.5 gal |
| Hydraulic System Fluid Capacity | 36.0 gal |
| Hydraulic System Relief Valve Pressure | 4,772 psi |
Engine
| Engine Model | C 4D34-TLE2A |
|---|---|
| Net Power | 91.2 hp |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 67 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 35 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 20 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 204 in |
|---|---|
| Max Loading Height | 246 in |
| Max Vertical Wall Digging Depth | 180 in |
| Max Cutting Height | 340 in |
Bucket
| Maximum Bucket Capacity | 0.80 yd³ |
|---|---|
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 221 in |
|---|---|
| Max Vertical Wall Digging Depth | 196 in |
| Max Cutting Height | 349 in |
| Max Loading Height | 256 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 240 in |
|---|---|
| Max Cutting Height | 360 in |
| Max Loading Height | 268 in |
| Max Vertical Wall Digging Depth | 211 in |
