John Deere
JCB
19C-1
Mini Excavator
60 specifications
1 / 5

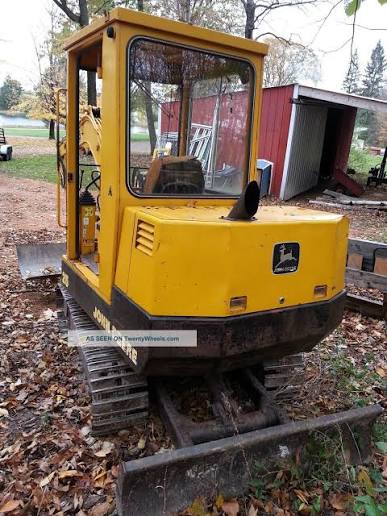

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 6,426 lb |
|---|---|
| Fuel Capacity | 12.9 gal |
| Hydraulic Pump Flow Capacity | 25.0 gal/min |
| Hydraulic System Fluid Capacity | 22.5 gal |
| Hydraulic System Relief Valve Pressure | 2,133 psi |
| Engine Oil Capacity | 1.1 gal |
| Cooling System Fluid Capacity | 1.5 gal |
Engine
| Engine Model | 3TN78-RJB |
|---|---|
| Displacement | 75 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 23.0 hp |
| Number of Cylinders | 3 |
| Aspiration | Natural |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 95 in |
| Tail Swing Radius | 55 in |
| Width to Outside of Tracks | 57 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 46 in |
| Number of Track Rollers per Side | 4 |
| Max Travel Speed | 1.3 mph |
| Shoe Size | 13 in |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 4,519 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 113 in |
|---|---|
| Max Reach Along Ground | 181 in |
| Max Vertical Wall Digging Depth | 49 in |
| Max Loading Height | 111 in |
| Shipping Length of Unit | 185 in |
| Max Cutting Height | 104 in |
| Shipping Height of Unit | 95 in |
Bucket
| Reference Bucket Capacity | 0.20 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
