Vermeer

CX218

Mini Excavator

Operating Weight
3,858 lb
Max Digging Depth
94 in
Net Power
18.0 hp
All mini excavators

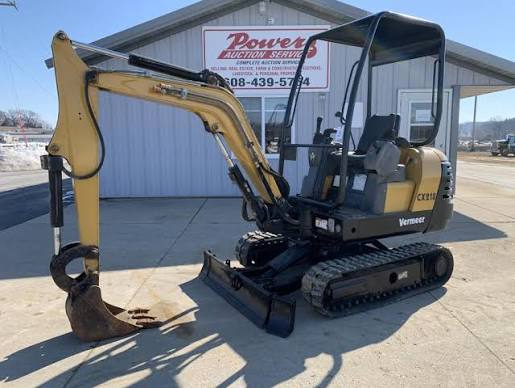

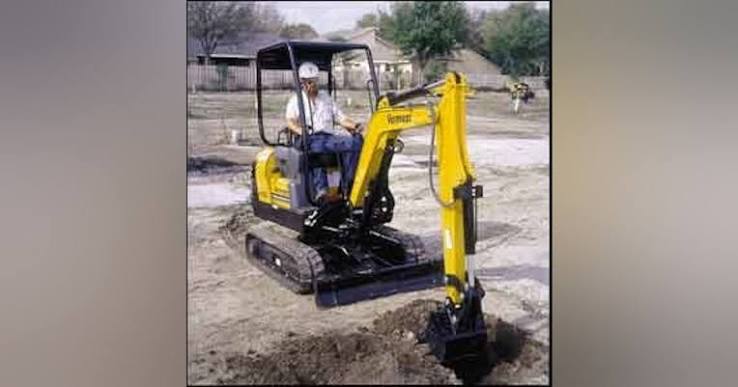

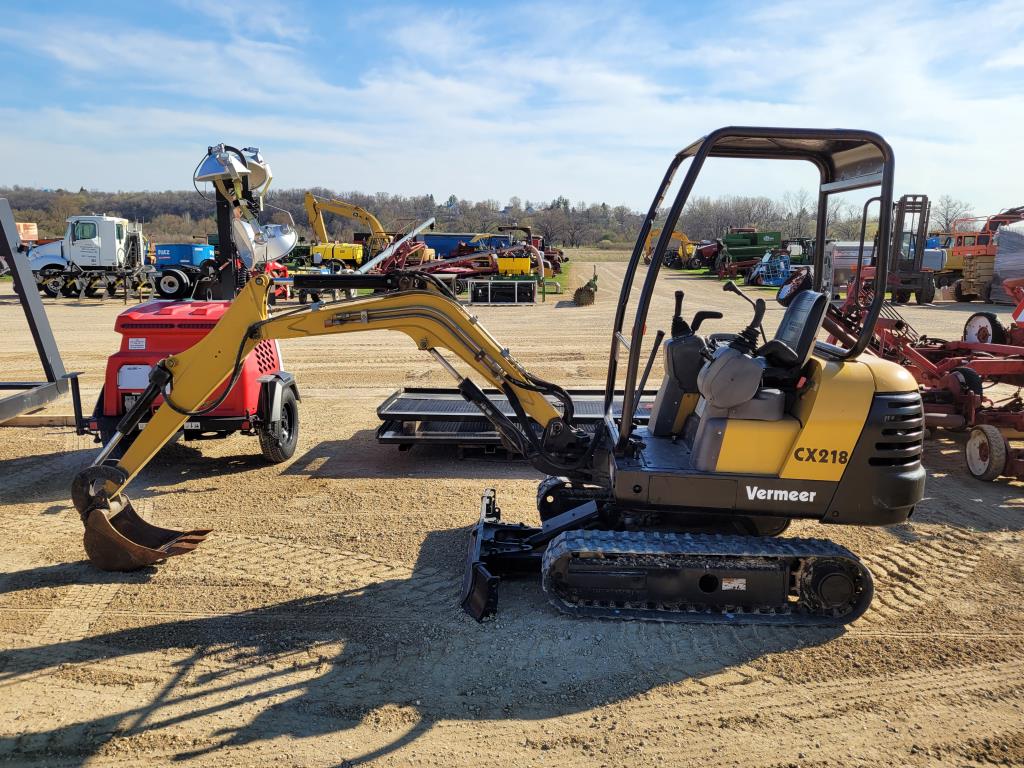

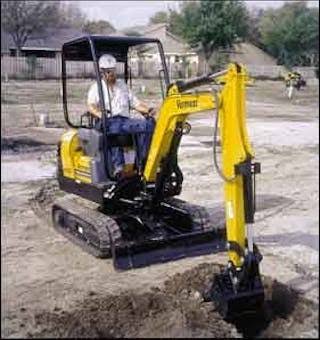

Vermeer CX218 Mini Excavator
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,858 lb
Fuel Capacity5.9 gal
Hydraulic Pump Flow Capacity8.7 gal/min
Hydraulic System Fluid Capacity6.6 gal

Engine

Engine specifications
Engine ModelD 1005-E Diesel
Displacement61 in³
Power Measured @2,500 rpm
Net Power18.0 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab88 in
Length of Track on Ground44 in
Tail Swing Radius42 in
Width to Outside of Tracks52 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge43 in
Max Travel Speed1.9 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth94 in
Max Reach Along Ground151 in
Max Vertical Wall Digging Depth62 in
Max Loading Height96 in
Max Cutting Height138 in
Shipping Height of Unit88 in
