John Deere

250

Skid Steer Loader

Operating Weight
6,250 lb
Max Speed
8.5 mph
All skid steer loaders

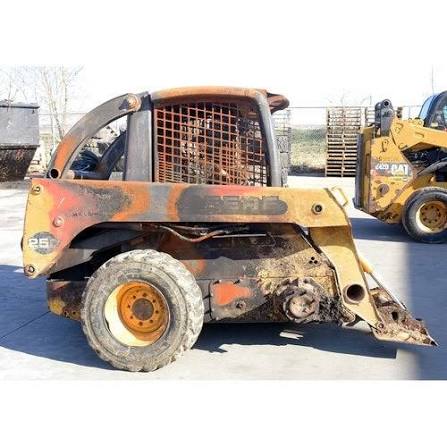

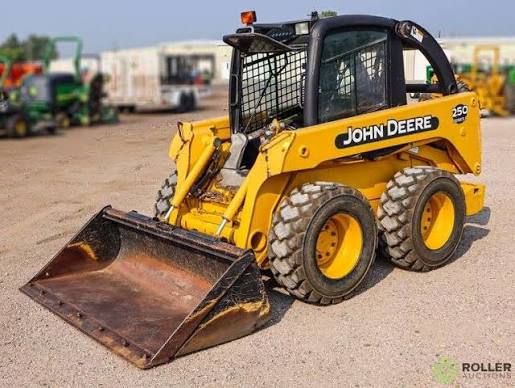

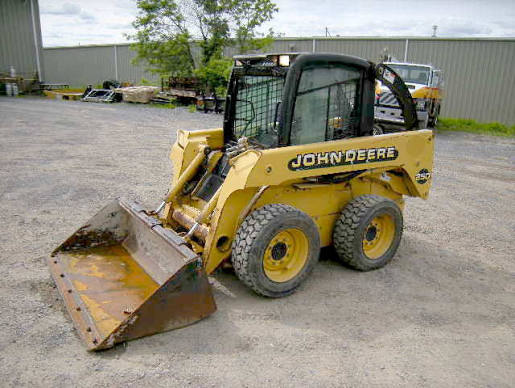

John Deere 250 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,250 lb
Max Speed8.5 mph
Fuel Capacity15.0 gal
Hydraulic System Fluid Capacity6.0 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity2.8 gal

Engine

Engine specifications
Engine Model3029T
Displacement179 in³
Power Measured @2,400 rpm
Number of Cylinders3

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.6 gal/min
Relief Valve Pressure3,100 psi
Pump TypeHydrostatic

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab77 in
Wheelbase43 in
Width Over Tires71 in
Reach at Max Lift and Dump28 in
Length with Bucket126 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket79 in
Turning Radius from Center - machine rear61 in
Length w/o Bucket103 in

Loader

Loader specifications
Operating Load Rating1,750 lb
Tipping Angle3,600 °
Breakout Force5,500 psi
