John Deere
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5

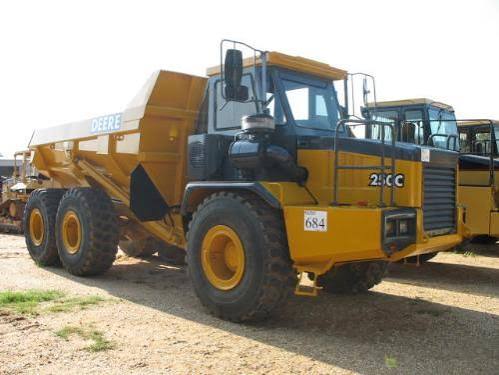

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Fuel Capacity | 57.0 gal |
|---|---|
| Tire Size | 23.5R25 |
| Engine Oil Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 12.4 gal |
| Hydraulic System Fluid Capacity | 21.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
| Transmission Fluid Capacity | 4.8 gal |
Engine
| Engine Model | OM366LA |
|---|---|
| Displacement | 363 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 247.0 hp |
| Net Power | 237.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and aftercooled |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 592 lb-ft |
Weights
| Total Empty | 36,350 lb |
|---|---|
| Front Axle - empty | 18,232 lb |
| Total Loaded | 87,056 lb |
| Rear Axle - empty | 8,893 lb |
| Front Axle - loaded | 28,462 lb |
| Rear Axle - loaded | 29,132 lb |
| Center Axle - empty | 9,224 lb |
| Center Axle - loaded | 29,463 lb |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Overall Length | 361 in |
| Overall Width | 108 in |
| Overall Height | 133 in |
| Dump Height | 228 in |
| Dump Ground Clearance | 23 in |
Transmission
| Max Speed | 30.0 mph |
|---|---|
| Transmission Type | Allison MD3560P automatic planetary hydraulically actuated multiple-disc clutches electronic control hydrodynamic torque converter with lock-up built-in PTO drive |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
Dump
| Rated Payload | 50,706 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 14.0 s |
| Lower Time | 7.0 s |
| Capacity - Heaped | 18.00 yd³ |
| Capacity - Struck | 15.00 yd³ |
