John Deere

27 ZTS

Mini Excavator

Operating Weight
6,360 lb
Max Digging Depth
104 in
Net Power
22.0 hp
All mini excavators

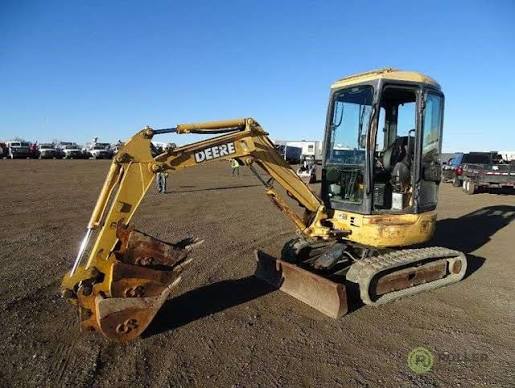

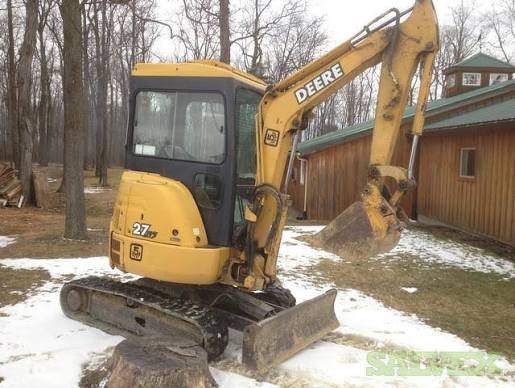

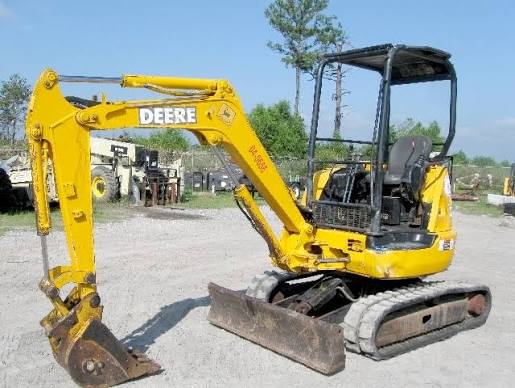

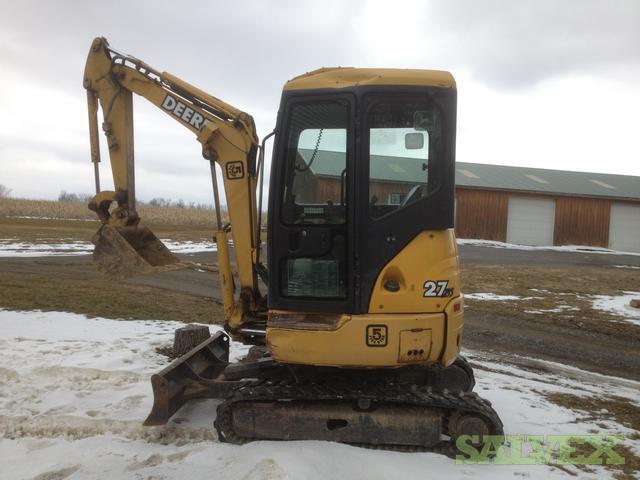

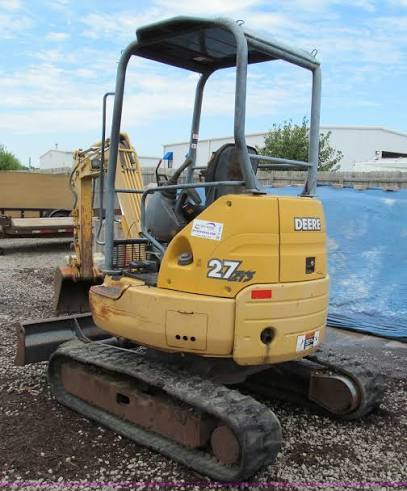

John Deere 27 ZTS Mini Excavator
1 / 5
Image 1 of 5
Image: salvex.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,360 lb
Fuel Capacity10.5 gal
Hydraulic Pump Flow Capacity12.0 gal/min
Hydraulic System Fluid Capacity7.9 gal
Operating Voltage12 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model3LD1
Displacement92 in³
Power Measured @2,450 rpm
Net Power22.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab101 in
Length of Track on Ground77 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance22 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed3.0 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth104 in
Max Reach Along Ground168 in
Max Vertical Wall Digging Depth104 in
Max Loading Height109 in
Shipping Length of Unit47 in
Max Cutting Height168 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
