Yanmar

VIO17-A

Mini Excavator

Operating Weight
3,836 lb
Max Digging Depth
93 in
Net Power
14.5 hp
All mini excavators

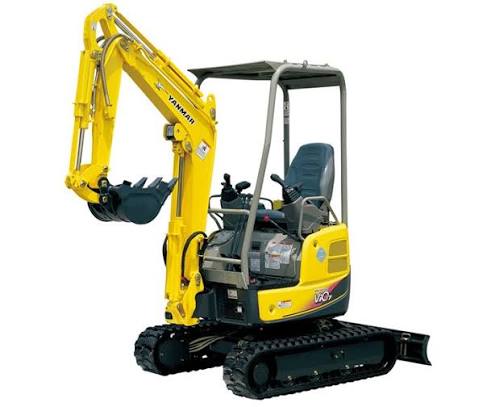

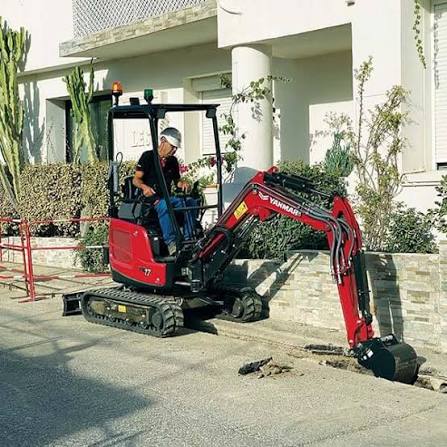

Yanmar VIO17-A Mini Excavator
1 / 5
Image 1 of 5
Image: yanmarce.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,836 lb
Fuel Capacity5.3 gal
Hydraulic Pump Flow Capacity15.2 gal/min

Engine

Engine specifications
Engine Model3TNV74F-SPBV
Power Measured @2,400 rpm
Net Power14.5 hp
Engine MakeYANMAR

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab91 in
Tail Swing Radius25 in
Width to Outside of Tracks39 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.7 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth93 in
Max Reach Along Ground150 in
Boom Swing - Left42 °
Boom Swing - Right65 °

Bucket

Bucket specifications
Bucket digging Force - SAE3,418 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
