John Deere
270D LC
- Operating Weight
- 63,425 lb
- Max Digging Depth
- 287 in
- Max Digging Depth
- 312 in
- Net Power
- 188.0 hp
1 / 5

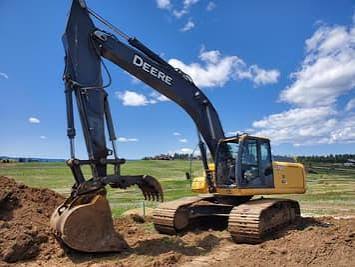

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 63,425 lb |
|---|---|
| Fuel Capacity | 132.0 gal |
| Hydraulic Pump Flow Capacity | 124.7 gal/min |
| Hydraulic System Fluid Capacity | 63.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.5 gal |
| Cooling System Fluid Capacity | 7.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.0 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 188.0 hp |
| Aspiration | Turbocharged w/ charge cooler |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 599 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 115 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 56,074 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 287 in |
|---|---|
| Max Reach Along Ground | 415 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 395 in |
| Shipping Length of Unit | 408 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.11 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 312 in |
|---|---|
| Max Vertical Wall Digging Depth | 277 in |
| Max Cutting Height | 413 in |
| Max Loading Height | 295 in |
| Max Reach Along Ground | 438 in |
| Shipping Length of Unit | 424 in |
| Shipping Height of Unit | 132 in |
